Produktbeskrivning

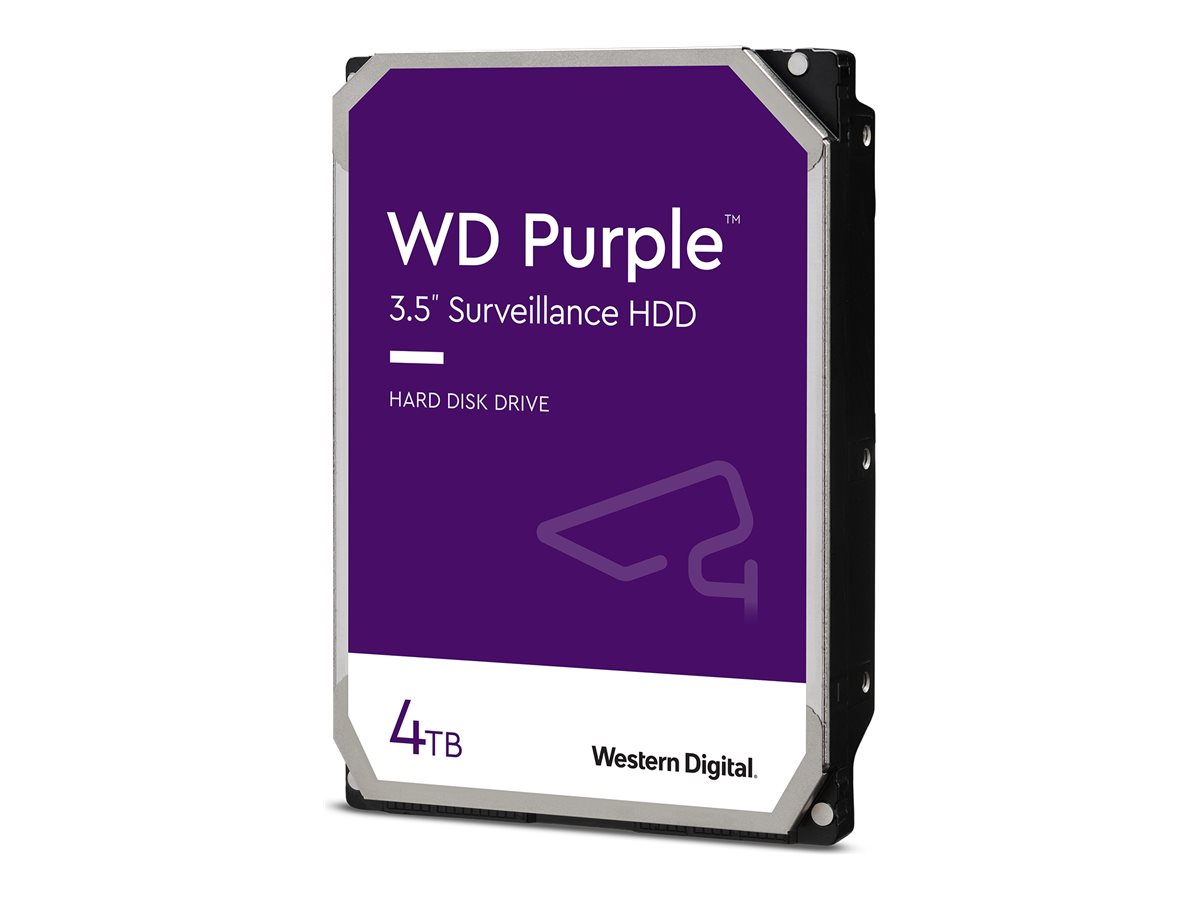

WD Purple drives are designed to meet the challenges of 24 x 7 video surveillance recording. These drives are engineered specifically for surveillance to help withstand the elevated heat fluctuations and equipment vibrations within NVR environments. An average desktop drive is built to run for only short intervals, not the harsh 24/7 always-on environment of a high-definition surveillance system. With WD Purple drives, you get reliable, surveillance-class storage that's tested for compatibility in a wide range of security systems. Great AllFrame technology helps reduce frame loss and improve overall video playback.



Egenskaper

Big storage and surveillance you can trust
Western Digital has provided surveillance-grade storage for more than a decade. With WD Purple surveillance storage, drives are engineered for high temperature, always-on surveillance systems so you can rely on quality video when you need it.

Western digital's WD AllFrame technology
All WD Purple drives are equipped with AllFrame technology, which helps reduce video frame drops and improves video recording and playback.

Enhanced workload ratings
WD Purple drives feature a workload rating - to handle the unique demands of mainstream video surveillance DVR and NVR systems.

Multiple cameras, multiple streams
Modern recorders support multiple video streams per camera. WD Purple drives support 64 single-stream HD cameras. With so many options, you have the flexibility to upgrade or expand your security applications in the future.

Designed for reliable operation
Engineered for reliability with an MTBF of 1 million hours and backed, WD Purple drives feature tarnish-resistant components and support for storage systems with 16 drive bays. WD Purple hard drives are designed with RAID error recovery control to help reduce failures in supported video recorders.

Wide compatibility and seamless integration
WD Purple hard drives are built with compatibility in mind, so you can quickly and seamlessly add capacity to your surveillance system. With a wide range of high enclosures and chipsets supported, you're sure to find the DVR or NVR configuration that's right for you.



Teknisk specifikation

Typ av enhet	Hårddisk - inbyggd
Kapacitet	4 TB
Formfaktor	3.5"
Gränssnitt	SATA 6Gb/s
Buffertstorlek	256 MB
Egenskaper	Advanced Format-teknik, AllFrame, tillgängligt dygnet runt alla dagar, CMR (Conventional Magnetic Recording)
Bredd	101.6 mm
Djup	147 mm
Höjd	26.1 mm

Hårddiskens överföringshastighet	600 MBps (extern)
Spindelhastighet	5400 rpm

MTBF (genomsnittstid mellan fel)	1,000,000 timmar
Dygnet-runt drift	Ja
Oåterkalleligt fel	1 per 10^14
Ladda/ladda ur cykler	300,000

Gränssnitt	1 x SATA 6 Gb/s
Kompatibelt fack	3.5"

Medföljande programvara	Western Digital Device Analytics

Standarder som följs	RoHS 2011/65/EU

Service och support	Begränsad garanti - 3 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	65 °C
Stöttolerans (vid drift)	30 g @ 2 ms
Stöttolerans (i vila)	250 g @ 2 ms
