Produktbeskrivning

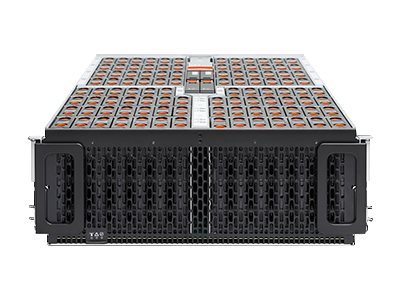

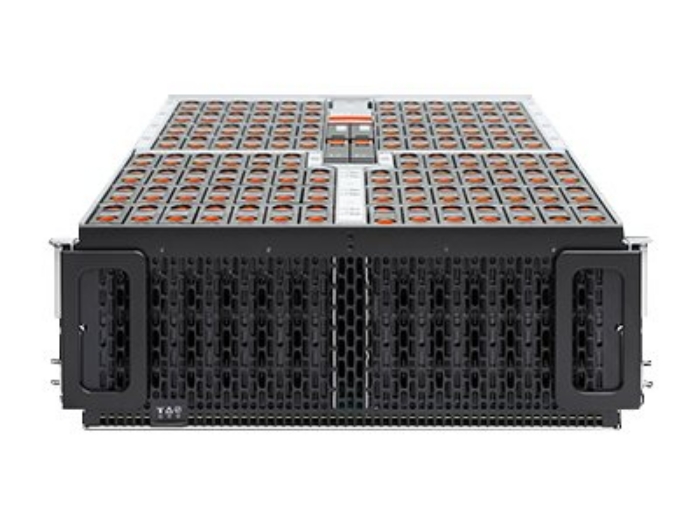

The Ultrastar Data102 hybrid storage platform is a key element of disaggregated storage and SDS systems. The extremely dense form factor provides the flexibility to specify the HDD and SSD combinations for balancing capacity, performance, and cost. A flash data acceleration tier can be enabled to serve both fast data and big data applications from a single platform. The Ultrastar Data102 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, and integrators that require dense, shared HDD or hybrid storage.



Egenskaper

IsoVibe technology
Precise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.

ArcticFlow technology
By introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.

Designed for the enterprise and the cloud
This platform addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers and resellers/integrators that require dense, shared HDD or hybrid storage. The Ultrastar Data102 provides the flexibility to specify the HDD and SSD combinations to balance capacity, performance and cost.



Teknisk specifikation

Typ av enhet	Kabinett för lagringsenheter
Modell	Kan monteras i rack - 4U

Antal installerade enheter / moduler	102
Antal enheter/moduler som stöds	102
Enheter som stöds	SATA-600 / SAS-3

CPU	Ingen CPU

Typ	HDD - hot-swap
Kapacitet	102 x 14 TB
Typ av gränssnitt	SAS 12Gb/s
Egenskaper	Säker raderingsfunktion, avancerat format 512e

Expansionsfack	102 (totalt)/ 0 (ledig) x hot-swap - 3.5"
Gränssnitt	SAS 12Gb/s

Egenskaper	SCSI Enclosure Services (SES), hotswapp-bara fläktar, luftflöde framifrån och bak, IsoVibe-vibrationsisoleringsteknik, ArcticFlow-kylteknik för termisk zoner

Nätdel	2 x intern strömförsörjning - hot-plug
Redundant ström	Ja
Schema för redundant ström	1+1
Nätspänning	AC 230 V - 50/60 Hz
Effekt	1600 Watt
80 PLUS-certifiering	80 PLUS Platinum

Bredd	44.7 cm
Djup	104.7 cm
Höjd	17.5 cm

Service och support	Begränsad garanti - 5 år

Min temperatur vid drift	5 °C
Max temperatur vid drift	35 °C
Luftfuktighet vid drift	5 - 85%
