Produktbeskrivning

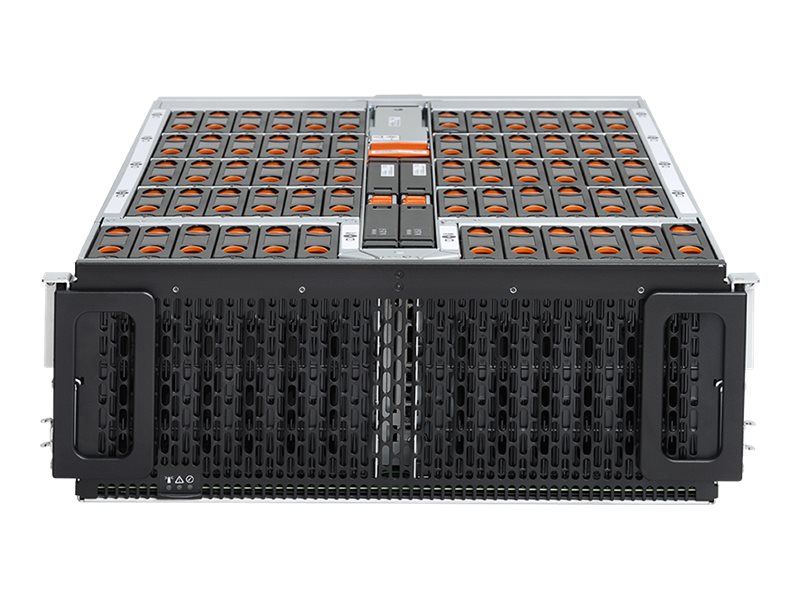

The Ultrastar Data102 hybrid storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The extremely dense form factor provides the flexibility to specify the HDD and SSD combinations for balancing capacity, performance, and cost.

A flash data acceleration tier can be enabled to serve both fast data and big data applications from a single platform. The Ultrastar Data102 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, and resellers/integrators that require dense, shared HDD or hybrid storage.



Egenskaper

IsoVibe vibration isolation technology
Precise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.

ArcticFlow thermal zone cooling technology
By introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.



Teknisk specifikation

Typ av enhet	Kabinett för lagringsenheter
Modell	Kan monteras i rack - 4U

Antal installerade enheter / moduler	60
Antal enheter/moduler som stöds	60
Enheter som stöds	SATA-600 / SAS-3

Total array-kapacitet	720 TB
Max kapacitet som stöds	720 TB

CPU	Ingen CPU

Typ	HDD - hot-swap
Kapacitet	60 x 12 TB
Typ av gränssnitt	SAS 12Gb/s
Egenskaper	TCG Opal Encryption, 512e Crypto

Expansionsfack	60 (totalt)/ 0 (ledig) x hot-swap - 3.5"
Gränssnitt	SAS 12Gb/s

Egenskaper	SCSI Enclosure Services 3 (SES3)

Nätdel	2 x intern strömförsörjning - hot-plug
Redundant ström	Ja
Schema för redundant ström	1+1
Nätspänning	AC 230 V - 50/60 Hz
Effekt	1600 Watt

Service och support	Begränsad garanti - 5 år

Min temperatur vid drift	5 °C
Max temperatur vid drift	35 °C
Luftfuktighet vid drift	8 - 80 % (icke-kondenserande)
