Produktbeskrivning

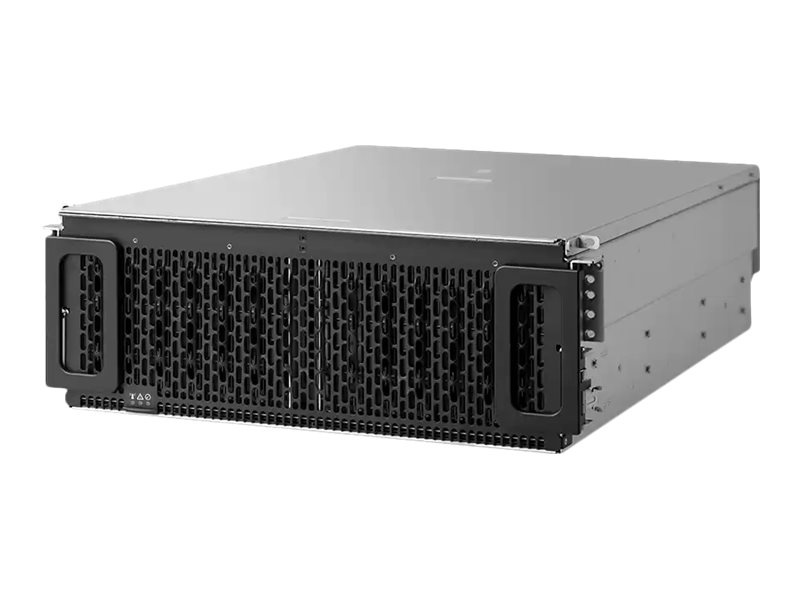

The Ultrastar Data60 is a key element of next-generation disaggregated storage and software-defined storage (SDS) systems, delivering high density and the flexibility to balance performance with cost.



Egenskaper

Designed for the enterprise and the cloud
The Ultrastar Data60 provides the flexibility to specify the HDD and SSD combinations to balance capacity, performance and cost.

IsoVibe vibration isolation technology
Precise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.

ArcticFlow thermal zone cooling technology
By introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.



Teknisk specifikation

Typ av enhet	Kabinett för lagringsenheter
Modell	Kan monteras i rack - 4U

Antal installerade enheter / moduler	60
Antal enheter/moduler som stöds	60
Enheter som stöds	SATA-600 / SAS-3

Typ	HDD - hot-swap
Kapacitet	60 x 14 TB
Typ av gränssnitt	SAS 12Gb/s
Egenskaper	HelioSeal, TCG-kryptering, 512-emulering (512e)

Expansionsfack	60 (totalt)/ 0 (ledig) x hot-swap - 3.5"
Gränssnitt	12 x SAS 12Gb/s

Egenskaper	SCSI Enclosure Services (SES), IsoVibe-vibrationsisoleringsteknik, ArcticFlow-kylteknik för termisk zoner

Nätdel	2 x intern strömförsörjning - hot-plug
Redundant ström	Ja
Schema för redundant ström	1+1
Nätspänning	200 - 240 V 50/60 Hz
Effekt	1600 Watt
80 PLUS-certifiering	80 PLUS Platinum

Bredd	44.7 cm
Djup	71.2 cm
Höjd	17.5 cm
Vikt	79.4 kg

Service och support	Begränsad garanti - 5 år

Min temperatur vid drift	5 °C
Max temperatur vid drift	35 °C
Luftfuktighet vid drift	5 - 85%
