Produktbeskrivning

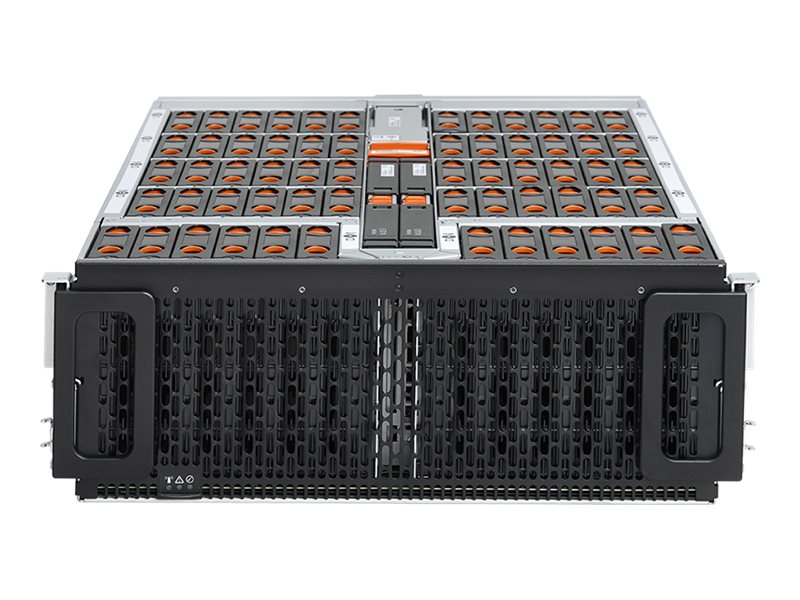

The Ultrastar Data60 hybrid storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The compact, efficient form factor provides the flexibility to specify the HDD and SSD combinations for balancing capacity, performance, and cost.

A flash data acceleration tier can be enabled to serve both fast data and big data applications from a single platform. The Ultrastar Data60 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, as well as resellers/integrators requiring dense, shared HDD or hybrid storage.



Egenskaper

High density
Up to 720TB raw capacity in a 4U enclosure.

Flexible
Choice of SAS or SATA with option for a flash data acceleration tier.

Innovative
IsoVibe and ArcticFlow for improved performance, cooling, and TCO.



Teknisk specifikation

Typ av enhet	Kabinett för lagringsenheter
Modell	Kan monteras i rack - 4U

Antal installerade enheter / moduler	24
Antal enheter/moduler som stöds	60
Enheter som stöds	SATA-600 / SAS-3

Total array-kapacitet	288 TB
Max kapacitet som stöds	720 TB

CPU	Ingen CPU

Typ	HDD - hot-swap
Kapacitet	24 x 12 TB
Typ av gränssnitt	SATA 6Gb/s
Egenskaper	Instant Secure Erase (ISE), 512e Crypto

Expansionsfack	60 (totalt)/ 36 (ledig) x hot-swap - 3.5"
Gränssnitt	12 x SAS 12Gb/s - Mini SAS HD (SFF-8643)

Egenskaper	SCSI Enclosure Services 3 (SES3)

Nätdel	2 x intern strömförsörjning - hot-plug
Redundant ström	Ja
Schema för redundant ström	1+1
Nätspänning	AC 230 V - 50/60 Hz
Effekt	1600 Watt
80 PLUS-certifiering	80 PLUS Platinum

Bredd	44.7 cm
Djup	71.2 cm
Höjd	17.5 cm

Service och support	Begränsad garanti - 5 år

Min temperatur vid drift	5 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	5 - 85 % (icke-kondenserande)
Ljudnivå	72 dBA
