Produktbeskrivning

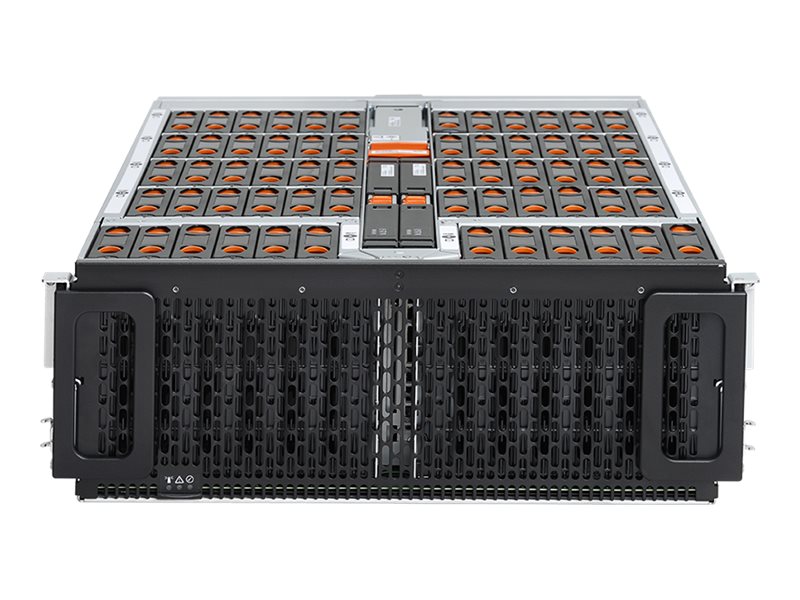

The Ultrastar Data60 hybrid storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The compact, efficient form factor provides the flexibility to specify the HDD and SSD combinations for balancing capacity, performance, and cost. The Ultrastar Data60 provides raw storage using the SMR HDDs in a compact and efficient form factor.

A flash data acceleration tier can be enabled to serve both fast data and big data applications from a single platform. The Ultrastar Data60 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, as well as resellers/integrators requiring dense, shared HDD or hybrid storage.



Egenskaper

IsoVibe vibration isolation technology
Precise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.

ArcticFlow thermal zone cooling technology
By introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.

Western digital resource manager
A GUI-based tool that enables real-time monitoring and management of the platform and provides a consolidated dashboard displaying the most critical information. Other views allow platform configuration, health monitoring, and maintenance.



Teknisk specifikation

Typ av enhet	Kabinett för lagringsenheter
Modell	Kan monteras i rack - 4U

Antal installerade enheter / moduler	24
Antal enheter/moduler som stöds	60
Enheter som stöds	SATA-600 / SAS-3

Total array-kapacitet	288 TB
Max kapacitet som stöds	720 TB

CPU	Ingen CPU

Typ	HDD - hot-swap
Kapacitet	24 x 12 TB
Typ av gränssnitt	SATA 6Gb/s
Egenskaper	Instant Secure Erase (ISE), 4Kn Crypto

Expansionsfack	60 (totalt)/ 36 (ledig) x hot-swap - 3.5"
Gränssnitt	12 x SAS 12Gb/s - Mini SAS HD (SFF-8643)

Egenskaper	SCSI Enclosure Services 3 (SES3)

Nätdel	2 x intern strömförsörjning - hot-plug
Redundant ström	Ja
Schema för redundant ström	1+1
Nätspänning	AC 230 V - 50/60 Hz
Effekt	1600 Watt
80 PLUS-certifiering	80 PLUS Platinum

Bredd	44.7 cm
Djup	71.2 cm
Höjd	17.5 cm

Service och support	Begränsad garanti - 5 år

Min temperatur vid drift	5 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	5 - 85 % (icke-kondenserande)
Ljudnivå	72 dBA
