Produktbeskrivning

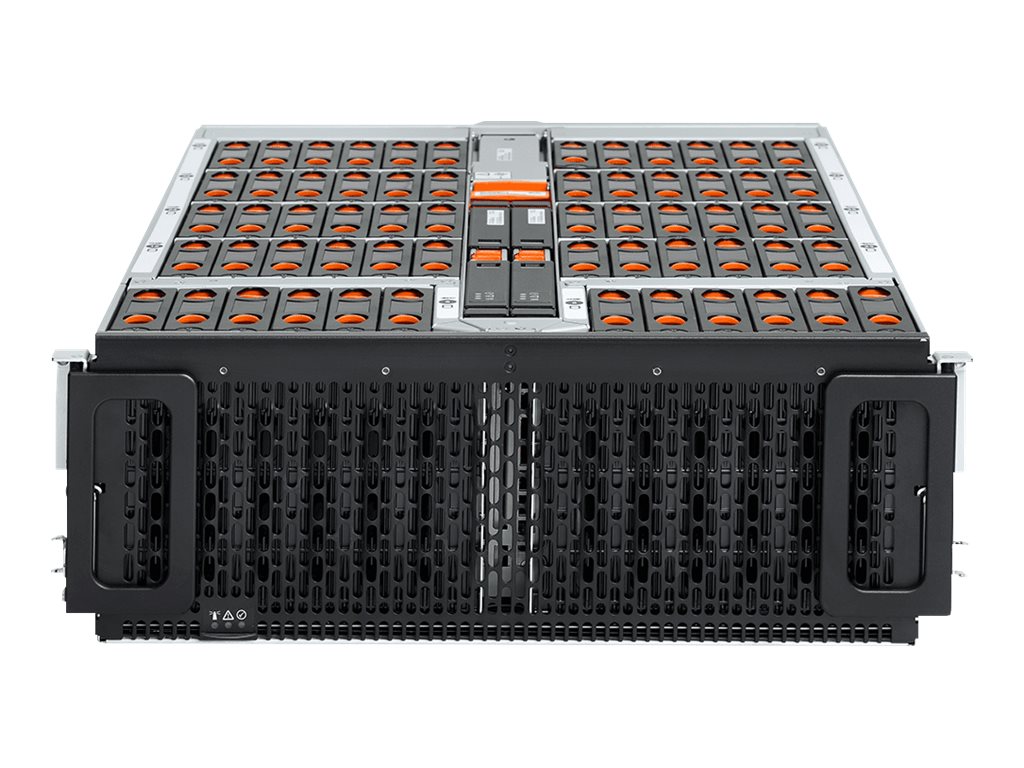

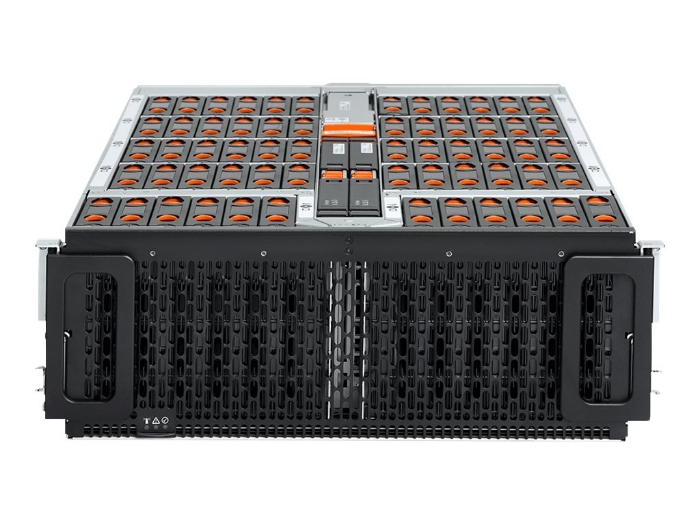

The Ultrastar Data60 hybrid storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The compact, efficient form factor provides the flexibility to specify the HDD and SSD combinations for balancing capacity, performance, and cost.
A flash data acceleration tier can be enabled to serve both fast data and big data applications from a single platform. The Ultrastar Data60 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, as well as resellers/integrators requiring dense, shared HDD or hybrid storage.
Precise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.
By introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.
Egenskaper
IsoVibe vibration isolation technologyPrecise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.
ArcticFlow thermal zone cooling technologyBy introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.
High densityUp to 840TB raw capacity in a 4U enclosure.
FlexibleChoice of SAS or SATA with option for a flash data acceleration tier.
InnovativeIsoVibe and ArcticFlow for improved performance, cooling, and TCO.
Teknisk specifikation
Allmänt
Typ av enhet | Kabinett för lagringsenheter |
Modell | Kan monteras i rack - 4U |
Chassi
Inbyggda enheter | 2 I/O-moduler |
Antal installerade enheter / moduler | 60 |
Antal enheter/moduler som stöds | 60 |
Enheter som stöds | SATA-600 / SAS-3 |
Lagring
Max kapacitet som stöds | 840 TB |
Hårddisk
Typ | HDD - hot-swap |
Kapacitet | 60 x 10 TB |
Typ av gränssnitt | SAS |
Egenskaper | Säker raderingsfunktion, avancerat format 512e |
Tillverkare | Western Digital |
Expansion/Anslutning
Expansionsfack | 60 (totalt)/ 0 (ledig) x hot-swap - 3.5" |
Gränssnitt | 12 x SAS 12Gb/s - Mini SAS HD (SFF-8644) |
Diverse
Egenskaper | SCSI Enclosure Services (SES), IsoVibe-vibrationsisoleringsteknik, ArcticFlow-kylteknik för termisk zoner |
Strömtillförsel
Nätdel | 2 x intern strömförsörjning - hot-plug |
Redundant ström | Ja |
Schema för redundant ström | 1+1 |
Nätspänning | AC 230 V - 50/60 Hz |
Effekt | 1600 Watt |
80 PLUS-certifiering | 80 PLUS Platinum |
Mått och vikt
Bredd | 44.7 cm |
Djup | 71.2 cm |
Höjd | 17.5 cm |
Vikt | 79.4 kg |
Tillverkarens garanti
Service och support | Begränsad garanti - 5 år |
Miljöparametrar
Min temperatur vid drift | 5 °C |
Max temperatur vid drift | 35 °C |
Luftfuktighet vid drift | 5 - 85% |
