Produktbeskrivning

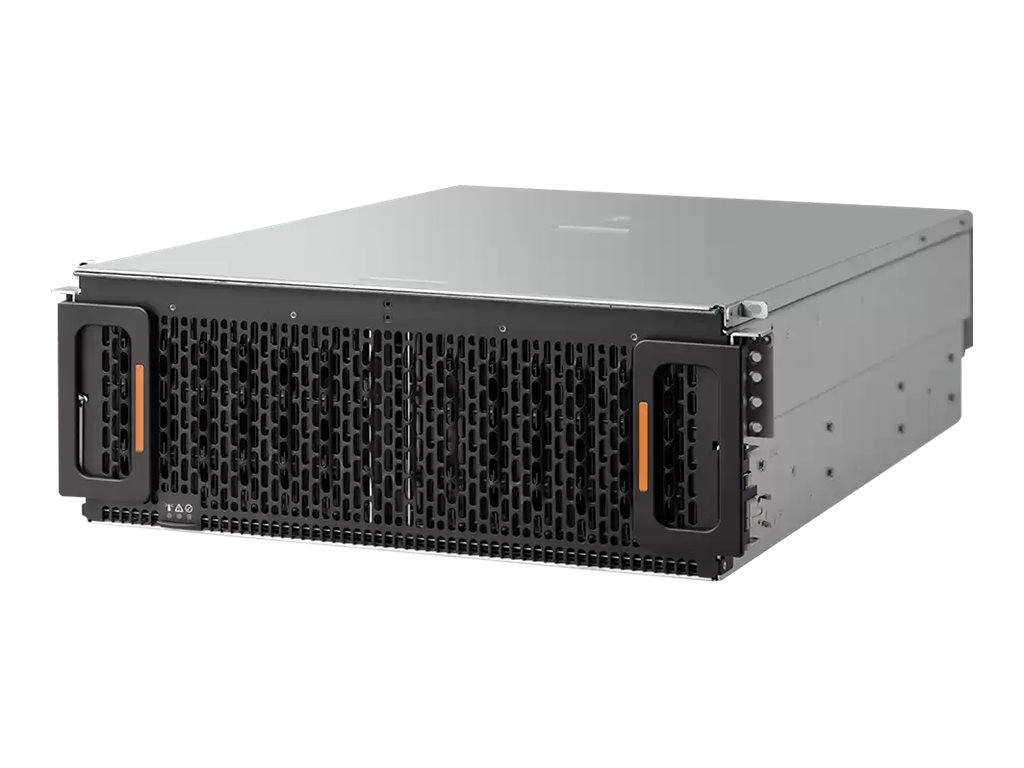

The Ultrastar Data60 hybrid storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The Ultrastar Data60 provides massive storage of raw storage in a compact and efficient form factor. The Ultrastar Data60 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, as well as resellers/integrators requiring dense, shared HDD.
Egenskaper
IsoVibe Vibration Isolation technologyPrecise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.
ArcticFlow Thermal Zone Cooling technologyBy introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.
Western Digital resource managerA GUI-based tool that enables real-time monitoring and management of the platform and provides a consolidated dashboard displaying the most critical information. Other views allow platform configuration, health monitoring, and maintenance.
Teknisk specifikation
Allmänt
Typ av enhet | Kabinett för lagringsenheter |
Modell | Kan monteras i rack - 4U |
Chassi
Inbyggda enheter | 2 I/O-moduler, 7 x fläktar |
Antal installerade enheter / moduler | 60 |
Antal enheter/moduler som stöds | 60 |
Enheter som stöds | SATA-600 / SAS-3 |
Hårddisk
Typ | HDD - hot-swap |
Kapacitet | 60 x 18 TB |
Typ av gränssnitt | SAS 12Gb/s |
Spindelhastighet | 7200 rpm |
Egenskaper | Säker raderingsfunktion, heliumfylld, avancerat format 512e |
Tillverkare | Western Digital |
Expansion/Anslutning
Expansionsfack | 60 (totalt)/ 0 (ledig) x hot-swap - 3.5" |
Gränssnitt | 12 x SAS 12Gb/s - Mini SAS HD |
Diverse
Egenskaper | Lysdiodindikator, SCSI Enclosure Services (SES), hotswapp-bara fläktar, IsoVibe-vibrationsisoleringsteknik, ArcticFlow-kylteknik för termisk zoner, hot och bytbar IOM |
Medföljande programvara | Western Digital Resource Manager |
Strömtillförsel
Nätdel | 2 x intern strömförsörjning - hot-plug |
Nätspänning | AC 200-240 V 50/60 Hz |
80 PLUS-certifiering | 80 PLUS Platinum |
Mått och vikt
Bredd | 44.7 cm |
Djup | 71.2 cm |
Höjd | 17.5 cm |
Vikt | 79.4 kg |
Tillverkarens garanti
Service och support | Begränsad garanti - 5 år |
Miljöparametrar
Min temperatur vid drift | 5 °C |
Max temperatur vid drift | 40 °C |
Luftfuktighet vid drift | 5 - 85% RH |
Ljudnivå | 72 dB |
