Produktbeskrivning

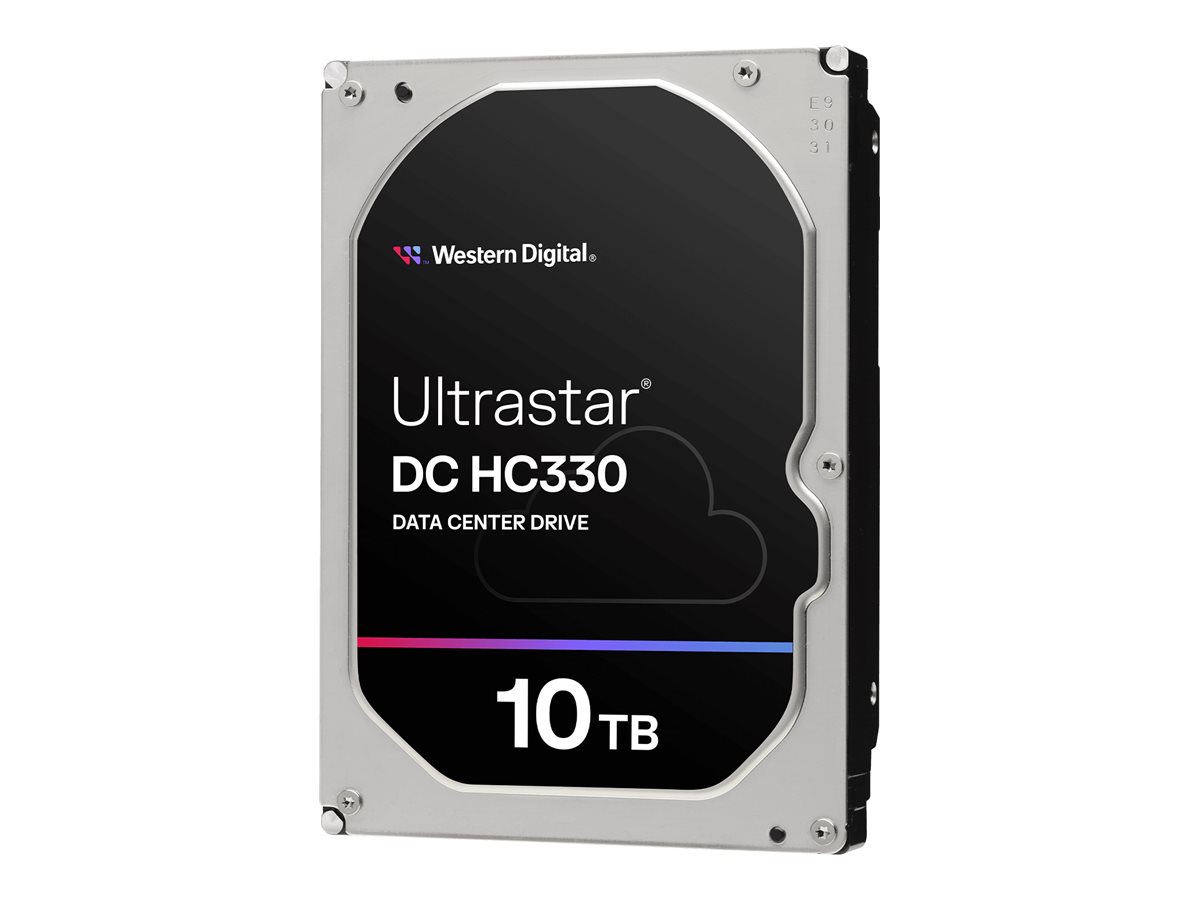

As the industry evolves to develop purpose-built solutions for growing data storage requirements, IT managers continue to rely on mid-range capacity drives that are economical to acquire, yet deliver quick and reliable data access for traditional data center applications. Designed to handle workloads up to 550TB per year, the Ultrastar DC HC300 series is a proven air-platform design that delivers up to the industry leading capacity to help address the economic and access-density requirements of many data center workloads. Ideal for storage and server applications, as well as distributed and scalable computing (including block and file storage architectures), the Ultrastar DC HC300 series provides fast 7,200 RPM spindle speeds.



Egenskaper

● Higher capacity
● Process data quickly with sustained transfer rates up to 255 MB/s
● Reliable: enterprise-class 2M hours MTBF



Teknisk specifikation

Typ av enhet	Hårddisk - inbyggd
Kapacitet	10 TB
Maskinvarukryptering	Ja
Formfaktor	3.5"
Gränssnitt	SAS 12Gb/s
Buffertstorlek	256 MB
Byte per sektor	512
Egenskaper	RV-kompensationsteknik (Rotational Vibration), Säker raderingsfunktion, avancerat format 512e, tillgängligt dygnet runt alla dagar
Bredd	101.6 mm
Djup	147 mm
Höjd	26.1 mm
Vikt	750 g

Hårddiskens överföringshastighet	1.2 GBps (extern)
Intern datafrekvens	260 MBps
Söktid	8 ms (medel)
Genomsnittlig åtkomsttid	4.16 ms
Spindelhastighet	7200 rpm

MTBF (genomsnittstid mellan fel)	2,000,000 timmar
Dygnet-runt drift	Ja
Oåterkalleligt fel	1 per 10^15
Ladda/ladda ur cykler	600,000

Gränssnitt	1 x SAS 12 Gb/s
Kompatibelt fack	3.5"

Strömkonsumtion	12.4 Watt (typisk) 9 Watt (inaktiv)

Service och support	Begränsad garanti - 5 år

Min temperatur vid drift	5 °C
Max temperatur vid drift	60 °C
Min temperatur vid förvaring	-40 °C
Max temperatur vid förvaring	70 °C
Stöttolerans (vid drift)	70 g @ 2 ms halvsinusvåg
Stöttolerans (i vila)	250 g @ 2 ms halvsinusvåg
Vibrationstolerans (vid drift)	0.67 g @ 5-500 Hz
Vibrationstolerans (i vila)	1.04 g @ 2-200 Hz
