Produktbeskrivning

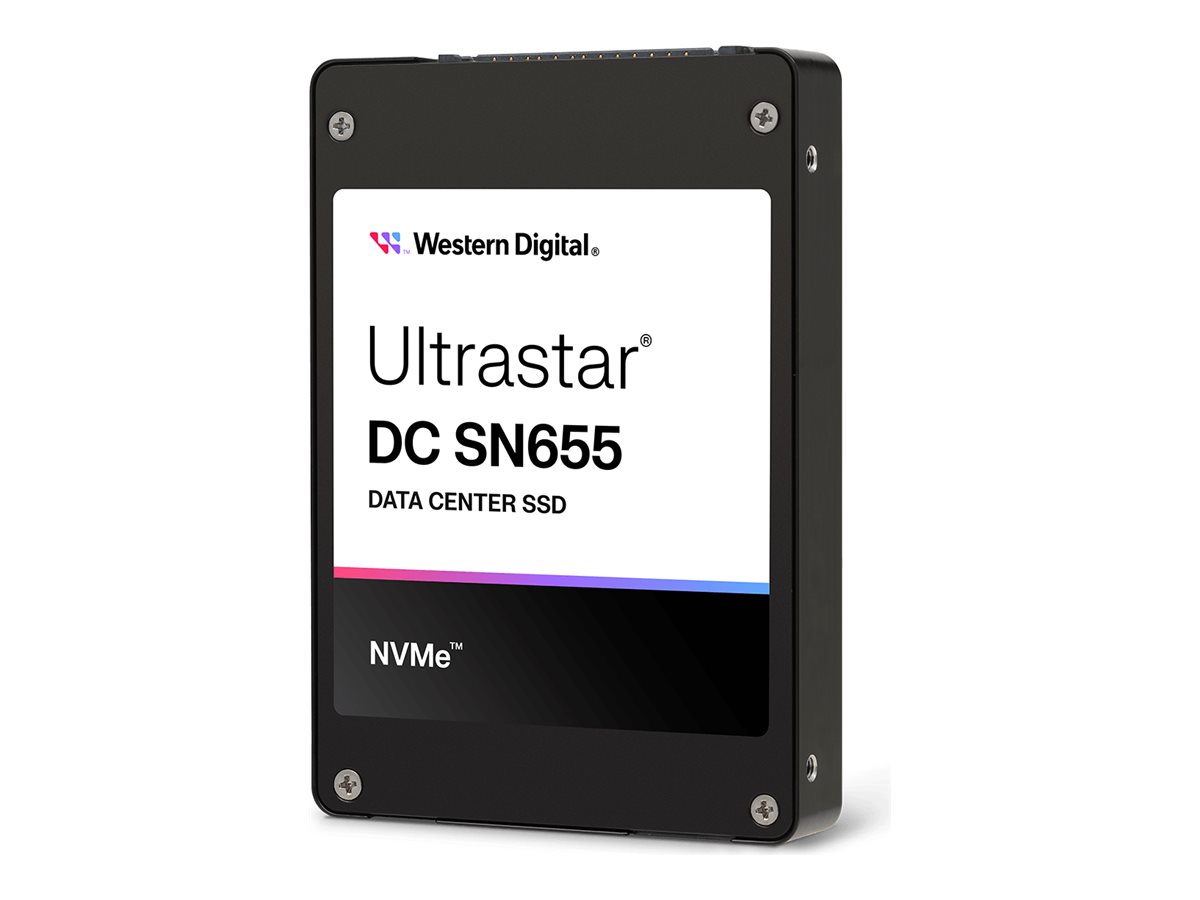

Ultrastar NVMe enterprise SSDs are an ideal solution for cloud and server providers who need performant, high-capacity, cost-optimized, read-intensive performance for their data-intensive applications.
Egenskaper
Unlocking the full potential of enterprise SSDsWith dual-port redundancy and failover capability, end-to-end data protection and additional enterprise features, Ultrastar DC SN655 NVMe SSDs help ensure your data is secure and available when needed. With high-capacity, low-latency performance reaching up to 1.1M IOPs, storage providers are efficiently able to increase capacity for modern applications processing large unstructured datasets and are reducing time-to-insights of big data and enabling efficient machine learning.
Advanced featuresUltrastar DC SN655 NVMe SSDs includes the next generation Western Digital NVMe 1.4b controller with PCIe Generation 4.0 interface and Western Digital BiCS5 TLC 3D NAND to enable higher capacities and performance at scale for increasingly larger application workloads. Designed and built for the standard 2.5" SSD storage infrastructure, the SN655 includes support for U.2 and U.3 backplanes.
Emerging workloadsUltrastar DC SN65x NVMe SSDs are optimized for cloud and scale-out workloads, providing high QoS consistency for the emerging workloads for big data, artificial intelligence, and machine learning that are increasing in size and complexity making them the ideal solution for scaling capacity and maximizing GB/Watt.
Teknisk specifikation
Allmänt
Typ av enhet | SSD-enhet - inbyggd |
Kapacitet | 15.36 TB |
NAND-flashminnestyp | 3D triple-level cell (TLC) |
Formfaktor | 2.5" |
Gränssnitt | U.3 PCIe 4.0 (NVMe) |
Egenskaper | Säker raderingsfunktion, End-to-end-datasökvägsskydd, Dual Port, Strömförlustskydd (PLP), Hantering av varierbar sektorstorlek, Western Digital BiCS5 3D TLC NAND, NVMe Management Interface (NVMe-MI) 1.1b, NVMe 1.4 |
Bredd | 69.85 mm |
Djup | 100.45 mm |
Höjd | 15 mm |
Vikt | 147.3 g |
Prestanda
Antal skrivningar per dag (DWPD) | 1 |
SSD-hållbarhet | 22 PB |
Intern datafrekvens | 6800 MBps (läs)/ 3700 MBps (skriv) |
Maximalt 4 KB Random Write | 125000 IOPS |
Max 4kB random read | 1100000 IOPS |
Pålitlighet
MTBF (genomsnittstid mellan fel) | 2,500,000 timmar |
Oåterkalleligt fel | 1 per 10^17 |
Expansion och anslutningar
Gränssnitt | U.3 PCIe 4.0 (NVMe) |
Kompatibelt fack | 2.5" |
Strömtillförsel
Strömkonsumtion | 20 Watt (typisk) 8 Watt (inaktiv) |
Programvara & Systemkrav
Operativsystem erfordras | Linux, Microsoft Windows Server, Microsoft Windows |
Tillverkarens garanti
Service och support | Begränsad garanti - 5 år |
Miljöparametrar
Min temperatur vid drift | 0 °C |
Max temperatur vid drift | 70 °C |
Min temperatur vid förvaring | -40 °C |
Max temperatur vid förvaring | 85 °C |
