Produktbeskrivning

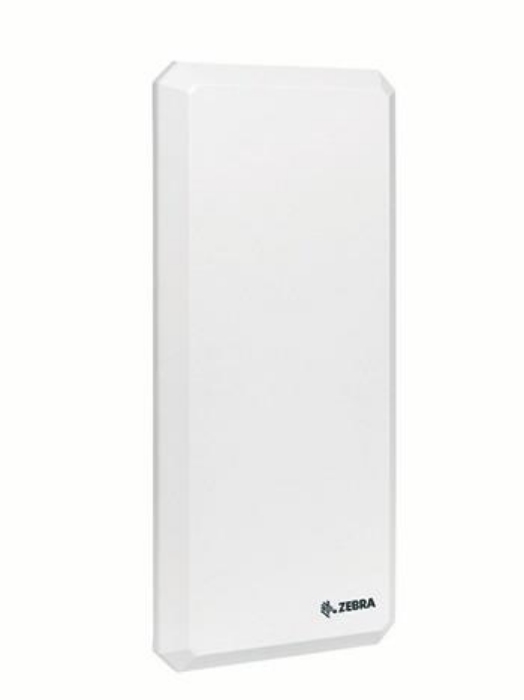

Get the capacity and range you demand for reliable RFID tag reading with the AN440 high-performance RFID area antenna. A good-looking, rugged general-purpose area antenna, the AN440 is designed to perform exceptionally in all environments, indoors and out. The AN440 RFID Antenna gives you a wide read field and high-speed RF signal conversion, so data capture is fast and accurate, even in expansive, high-demand environments.

Easy to mount
The AN440's rugged white housing is at home in customer-facing and industrial settings. You can achieve superior read zones around stockroom shelves, warehouse doorways and dock platforms. Anywhere boxes and pallets are moving into and out of your facility.

Longer read ranges
The rectangular AN440 antenna is designed to deliver faster, more accurate communication of EPC-compliant passive tag data to your RFID readers. Your workflow keeps flowing, your inventory count stays accurate and your productivity can reach new heights.

LIFECYCLE SUPPORT
Our RFID Advanced Services provide the assistance you need to architect your solution for your business, processes and environment, ensuring that your pilot or full-scale rollout is designed to deliver peak performance.



Viktiga egenskaper

Zebra AN440. Antenna gain level (max): 6 dBi, Frequency band: 0.865 - 0.868, 0.902 - 0.928 GHz. Antenna type: Omni-directional antenna, Antenna connector type: N-type, Connector gender: Female. Power consumption (max): 10 W. Width: 259.1 mm, Depth: 33.5 mm, Height: 575.1 mm. Quantity per pack: 1 pc(s)



Teknisk specifikation

Antenna gain level (max)	6 dBi
Frequency band	0.865 - 0.868, 0.902 - 0.928 GHz

Antenna type	Omni-directional antenna
Connector gender	Female
Antenna connector type	N-type
Polarization	Circular polarization
Voltage Standing Wave Ratio (VSWR)	1.4:1
International Protection (IP) code	IP67
Ultraviolet (UV) resistant	Yes
Mounting	Ceiling/wall
Isolation	38 dB
Front to back ratio	20 dB
Purpose	Indoor & outdoor
Housing material	Acrylonitrile styrene acrylate (ASA)
Product colour	White

Power consumption (max)	10 W

Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 85 °C

Width	259.1 mm
Depth	33.52 mm
Height	575.1 mm
Weight	1900 g

Quantity per pack	1 pc(s)

Harmonized System (HS) code	85177100
