Produktbeskrivning

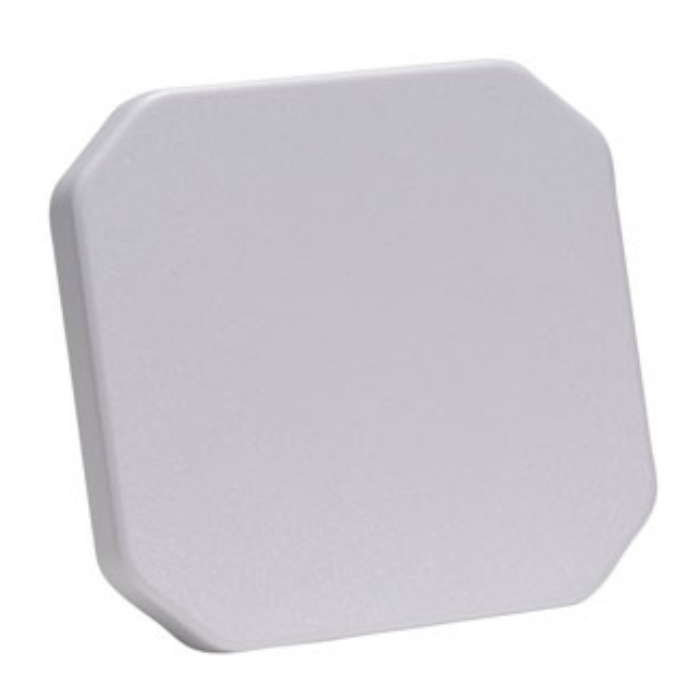

The AN720 RFID antennas offer all the features required for both indoor and outdoor environments. A perfect complement to Motorola’s FX7400 RFID Reader, the AN720 antennas are extremely compact, offering the aesthetics required for the most discreet installation in the most space constrained areas. The rugged AN720 is impact and vibration resistant, and designed to withstand exposure to rain, snow and extreme temperatures — ideal for the receiving dock doors or outdoor shopping areas.



Viktiga egenskaper

Motorola AN720. Antenna gain level (max): 6 dBi, Impedance: 50 Ω. Antenna connector type: N-type, Connector gender: Female, Polarization: Circular polarization. Certification: MIL-STD-810 IEC 68-2-27 lEC 68-2-30 IP 6. Width: 132.8 mm, Depth: 18.1 mm, Height: 132.8 mm. Frequency range: 865-868 MHz



Teknisk specifikation

Antenna gain level (max)	6 dBi
Impedance	50 Ω

Connector gender	Female
Antenna connector type	N-type
Polarization	Circular polarization
Voltage Standing Wave Ratio (VSWR)	1.5:1
Purpose	Indoor & outdoor
Mounting	Wall
Product colour	White
Certification	MIL-STD-810 IEC 68-2-27 lEC 68-2-30 IP 6

Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	40 - 85 °C

Width	132.8 mm
Depth	18.1 mm
Height	132.8 mm
Weight	460 g

Harmonized System (HS) code	85177100

Frequency range	865-868 MHz
