Produktbeskrivning

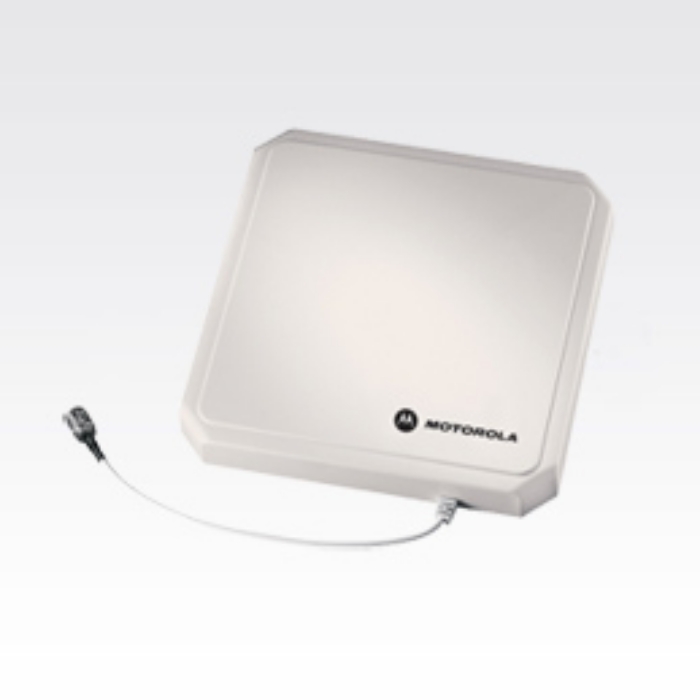

This single port antenna offers the maximum flexibility and performance required to meet the needs of enterprises around the world. Compatible in virtually any global market, Motorola's AN480 can be installed throughout the enterprise in manufacturing and warehouse floor environments or any dock door receiving application

The AN480 antenna offers a low axial ratio that delivers a more uniform gain for superior performance.



Viktiga egenskaper

Motorola AN480-CL66100WR. Antenna gain level (max): 6 dBi, Impedance: 50 Ω. Antenna connector type: N-type, Polarization: Horizontal polarization, Voltage Standing Wave Ratio (VSWR): 1.22:1. Compliance certificates: RoHS, Certification: IP 54 IEC-68 UL-746C. Width: 259.1 mm, Depth: 258.1 mm, Height: 50.3 mm. Frequency range: 865-868 MHz



Teknisk specifikation

Antenna gain level (max)	6 dBi
Impedance	50 Ω

Antenna connector type	N-type
Polarization	Horizontal polarization
Voltage Standing Wave Ratio (VSWR)	1.22:1
Power handling	2 W
Mounting	Wall
Product colour	White
Certification	IP 54 IEC-68 UL-746C

Compliance certificates	RoHS

Width	259.1 mm
Depth	258.1 mm
Height	50.3 mm
Weight	1130 g

Harmonized System (HS) code	85177100

Frequency range	865-868 MHz
