Produktbeskrivning

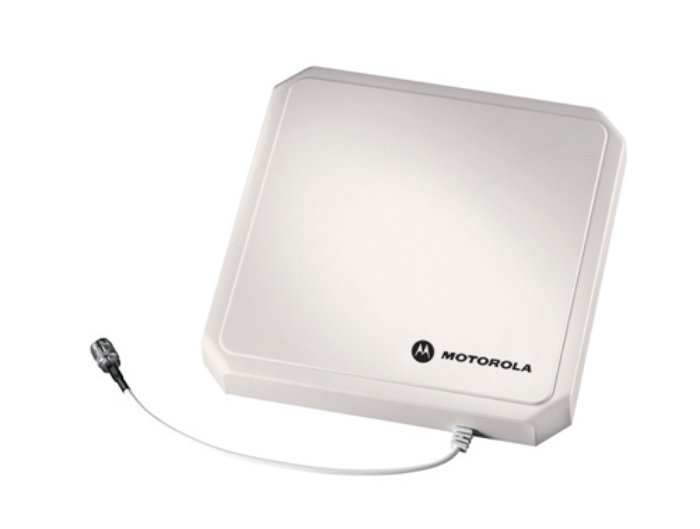

This single port antenna offers the maximum flexibility and performance required to meet the needs of enterprises around the world. Compatible in virtually any global market, Motorola's AN480 can be installed throughout the enterprise from the manufacturing and warehouse floors to the dock doors and outside in the yard.

The AN480 antenna offers the environmental sealing required for indoor and outdoor use. Its extremely low axial ratio delivers a more uniform gain for superior performance.



Viktiga egenskaper

Motorola AN480 RFID Antenna. Antenna gain level (max): 6 dBi, Impedance: 50 Ω, Horizontal beam width: 65°. Antenna type: Directional antenna, Antenna connector type: N-type, Voltage Standing Wave Ratio (VSWR): 1.22:1. Certification: RoHS, UL. Width: 259.1 mm, Depth: 259.1 mm, Height: 50.3 mm. Frequency range: 865 - 868 MHz



Teknisk specifikation

Antenna gain level (max)	6 dBi
Impedance	50 Ω
Horizontal beam width	65 °
Vertical beam width	65 °

Antenna type	Directional antenna
Antenna connector type	N-type
Voltage Standing Wave Ratio (VSWR)	1.22:1
Purpose	Outdoor
Power handling	2 W
Product colour	White
Certification	RoHS, UL

Width	259.1 mm
Depth	259.1 mm
Height	50.3 mm
Weight	1130 g

Harmonized System (HS) code	85177100

Frequency range	865 - 868 MHz
