Produktbeskrivning

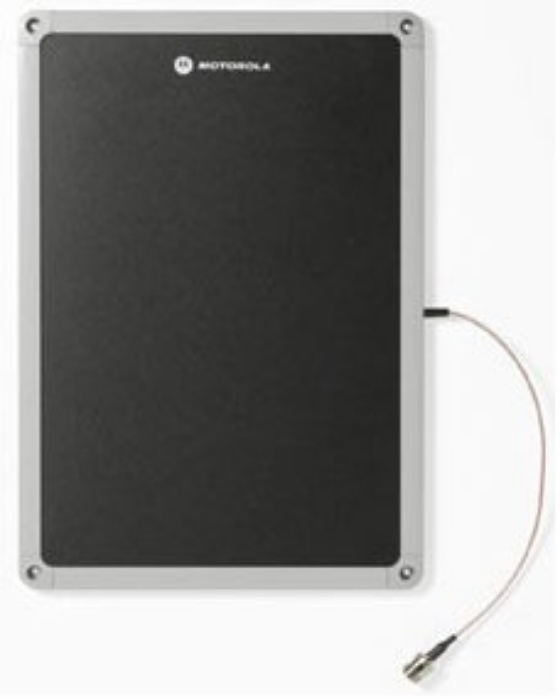

Sleek, rectangular circularly polarized antenna.
Suitable for use in Indoor environments: wall mount, doorways, under counter, above counter as an RFID pad, on shelves, on end-cap displays, POS etc.
- Integrated Mounting Holes.
- Comes with mounting hardware for flat panel mounting.
- Comes with 1ft of pigtail cable, compatible to Motorola standard antenna cables for extension.
Viktiga egenskaper
Motorola AN620-SCL71130EU. Antenna gain level (max): 4 dBi, Frequency band: 0.902 - 0.928 GHz, Horizontal beam width: 75°. Antenna connector type: N-type, Connector gender: Female, Polarization: Circular polarization. Certification: TBD. Width: 275 mm, Depth: 391 mm, Height: 12 mm
Teknisk specifikation
Performance
| Antenna gain level (max) | 4 dBi |
|---|
| Frequency band | 0.902 - 0.928 GHz |
|---|
| Horizontal beam width | 75 ° |
|---|
| Vertical beam width | 48 ° |
|---|
Features
| Connector gender | Female |
|---|
| Antenna connector type | N-type |
|---|
| Polarization | Circular polarization |
|---|
| Voltage Standing Wave Ratio (VSWR) | 1.4:1 |
|---|
| Purpose | Indoor |
|---|
| Mounting | Wall |
|---|
| Product colour | Black,Silver |
|---|
| Certification | TBD |
|---|
Operational conditions
| Operating temperature (T-T) | -20 - 55 °C |
|---|
| Storage temperature (T-T) | -30 - 65 °C |
|---|
Weight & dimensions
| Width | 275 mm |
|---|
| Depth | 391 mm |
|---|
| Height | 12 mm |
|---|
| Weight | 1000 g |
|---|
Logistics data
| Harmonized System (HS) code | 85177100 |
|---|
