Produktbeskrivning

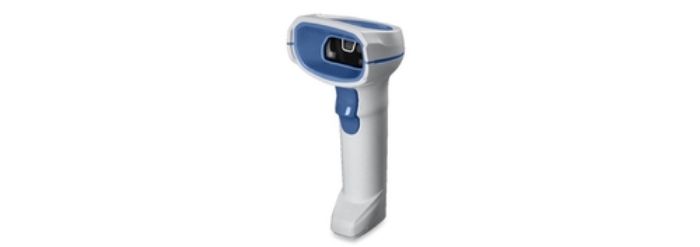

Zebra's premium DS8178-HC cordless scanner is purpose-built for healthcare environments and clinician workflows. With unparalleled performance to read the toughest barcodes in any condition, clinicians can stay focused on patient care. Two interchangeable power options can be swapped at any time, right in your facility, providing the flexibility to meet changing business needs while protecting your original investment.



Viktiga egenskaper

Zebra DS8178-HC. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired & Wireless, Standard interfaces: RS-232, USB, Keyboard wedge, Wireless range: 100 m. Product colour: White, International Protection (IP) code: IP42. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery type: Built-in battery. Weight: 235 g, Width: 66 mm, Depth: 107 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D/2D
Sensor type	LED
2D (matrix & stacked) barcodes supported	Aztec Code,Composite Codes,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code,TLC-39
Linear (1D) barcodes supported	Codabar,Code 11,Code 128,Code 39,Code 93,GS1 DataBar Expanded,Interleaved 2 of 5,MSI,Plessey,U.P.C.
Wavelength	528 nm
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 60 °
Yaw reading angle	0 - 60 °

Connectivity technology	Wired & Wireless
Standard interfaces	RS-232,USB,Keyboard wedge
Wireless range	100 m
Bluetooth Low Energy (BLE)	Yes
Bluetooth version	4.0
PC connection	RS-232/USB

Product colour	White
International Protection (IP) code	IP42

Power source type	Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery type	Built-in battery
Number of batteries supported	1
Battery capacity	2500 mAh
Number of reads per charge	65000
Battery life	83 h
Input voltage	5 V

Width	66 mm
Depth	107 mm
Height	168 mm
Weight	235 g

Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %

Harmonized System (HS) code	84716070
