Produktbeskrivning

When it comes to choosing a tablet for your business, your workers want sleek consumer styling, while you need enterprise-class durability, data capture and an accessory family that allows you to create the perfect tablet solution for your environment, workers and apps. Now you can have it all with the ET51 and ET56 Enterprise Tablets. The thinnest and lightest of the full line of Zebra rugged tablet computers, the ET51 and ET56 provide your workers with the same great styling they love on their personal tablet. You get a tablet built to handle all-day, everyday business, inside and outside your four walls. Both the compact 8.4 inch or full-size 10.1 inch model have bright, daylight viewable displays, and are loaded with features that make data capture easy. And a wide range of accessories boost ruggedness, simplify charging, extend battery life and make this tablet easy to carry and easy to wear. The ET51/ET56 Enterprise Tablets — all the features your business needs, with the consumer good looks your workers want.

Rugged and ready to use indoors and outside
Virtually nothing will stop your tablets from delivering the reliable operation you need — it’s built to handle drops to concrete, rain, snow, dust, extreme heat, subzero temperatures, spilled liquids and even a hose-down at full force. And you can virtually double the concrete drop specification from 3.2 ft./1 m to 5.9 ft./1.8 m with the optional rugged frame. The Corning® Gorilla® Glass display provides shatter- and scratch-resistance, protecting one of the most vulnerable components on any tablet. And vibration testing ensures this tablet is ideal for use in practically any vehicle, from forklifts in a warehouse to delivery and other trucks out on the road.

Class-best brightness and your choice of screen size
The compact, small and light 8.4 in. model is ideal when size and weight are most important. The 10.1 in. model is ideal for information intensive apps, providing maximum display area. No matter which display you choose, you get class-best brightness that makes the ET51/ET56 the easiest to read tablets in virtually any lighting conditions — including bright sunlight.

Advanced touchscreen technology
Workers can choose their preferred data input mode: a finger, with or without a glove; or a passive stylus for more precision. And every input mode works, even if the display is wet.

The fastest wireless connections inside and outside the four walls
With support for 802.11, the ET51 and ET56 work on virtually any WiFi network. And with support for LTE on the ET56, you can give workers in the field a dependably fast cellular connection just about anywhere in the world. The result? The constant connectivity your workforce needs to improve productivity and customer service quality.

Perpetual 24x7x365 power
The removable battery ensures that the ET51 and ET56 never need to be taken out of service to charge — just swap in a fully charged battery at any time. And if you’re looking to power the longest of shifts, just add a second optional hot-swappable battery via the innovative expansion back to more than double the battery run time.

The power to run the most demanding apps
The fast ultra-low power processor combines with plenty of memory, allowing workers to run multiple apps simultaneously. And the processor minimizes power consumption, extending useful battery life.

ADVANCED DATA CAPTURE
Advanced enterprise-class scanning
Add the Zebra enterprise-class SE4710 scan engine for light scanning or SE4750 scan engine for moderate to heavy scanning via the easy to install and easy to use expansion pack. Or pick any Zebra Bluetooth scanner to pair with your tablet. And for occasional imaging, just use the integrated 8MP rear-facing color camera.* No matter which scanning option you choose, you can count on superior scanning performance. Our scanners offer PRZM Intelligent Imaging and the advanced algorithms that Zebra is famous for, providing your workers with first-time every-time fast capture of virtually any 1D or 2D barcode in any condition — damaged, dirty or poorly printed.

Video calls for on-the-spot help
The integrated 2MP front camera enables video calling over the WiFi or cellular network, allowing your workers to get instant help from a remote expert, co-worker or supervisor.

CUSTOMIZE YOUR TABLET SOLUTION WITH AN UNMATCHED ACCESSORY FAMILY
The most charging options
Charging solutions that mount on a wall or sit on a desktop enable charging anywhere in your facility. The unique ShareCradle provides space- and cost-efficiencies in the backroom by providing a common base to charge all your Zebra mobile computers and tablets — just insert the right cups for your devices in the charge bays. Charge the tablets in cars, trucks, forklifts and more with third-party vehicle cradles for cars and vehicle mounts. And docking station charging solutions available for either the standalone tablet or the tablet inside the rugged frame offer three USB ports, Ethernet and HDMI, providing all the connectivity you need to use the ET51/ET56 as a desktop solution and more.

Innovative Expansion Back to add new features
Simply replace the standard battery back with one of three Expansion Backs to add a rotating handstrap, or the SE4710 or SE4750 enterprise scan engine with a rotating handstrap. And the optional hot swappable battery can be added to any Expansion Back for around-the-clock power.

Flexible ‘wearability’
One flexible case provides your workers with three ‘wearable’ options: in a holster on a belt, in an over-the-shoulder strap or a cross-body strap.

UNSURPASSED SERVICE
Extraordinary ‘cover everything’ service
Zebra OneCare sets the industry standard for repair services, keeping your ET51 and ET56 tablets up, running at peak performance — and in like new condition. Choose the level of service that fits your needs and your budget. And no matter which level you choose, you get comprehensive coverage that literally covers everything — normal wear and tear and accidental damage. And since nobody knows our products better than we do, you get unparalleled from-the-manufacturer expertise.



Viktiga egenskaper

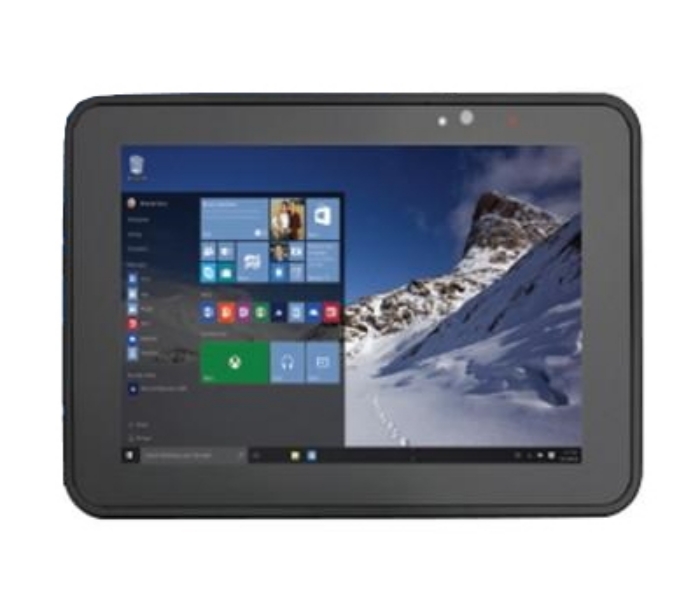

Zebra ET56. Display diagonal: 21.3 cm (8.4"), Display resolution: 2560 x 1600 pixels. Internal storage capacity: 64 GB. Processor frequency: 1.6 GHz, Processor family: Intel Atom®, Processor model: x5-E3940. Internal memory: 4 GB. Rear camera resolution (numeric): 8 MP, Front camera resolution (numeric): 2 MP. Top Wi-Fi standard: Wi-Fi 5 (802.11ac). Assisted GPS (A-GPS). Card reader integrated. Weight: 570 g. Operating system installed: Windows 10 IoT Enterprise. Product colour: Black



Teknisk specifikation

Display diagonal	8.4 "
Display resolution	2560 x 1600 pixels
Display brightness	720 cd/m²
Display glass type	Gorilla Glass
Touchscreen type	Capacitive

Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	x5-E3940
Processor cores	4
Processor threads	4
Processor boost frequency	1.8 GHz
Processor frequency	1.6 GHz
Processor cache	2 MB
Processor cache type	L2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes
UART	Yes
Processor package size	24 x 31 mm
Tcase	100 °C
Processor operating modes	64-bit
Number of execution units	12
Tjunction	110 °C
Processor series	Intel Atom x5 Series
Thermal Design Power (TDP)	9.5 W
Processor codename	Apollo Lake
Processor lithography	14 nm

Internal memory	4 GB
Internal memory type	LPDDR4-SDRAM

Internal storage capacity	64 GB
Card reader integrated	Yes
Compatible memory cards	SDXC
Maximum memory card size	2000 GB
Storage media	eMMC

Graphics card family	Intel
Graphics card	HD Graphics 5000

Number of built-in speakers	2
Number of microphones	2

Rear camera type	Single camera
Rear camera resolution (numeric)	8 MP
Auto focus	Yes
Rear camera flash	Yes
Video recording	Yes
Resolution at capture speed	1920x1080@30fps
Maximum video resolution	1920 x 1080 pixels
Video recording modes	1080p
Video capturing speed	30 fps
Front camera	Yes
Front camera resolution (numeric)	2 MP

Mobile network connection	Yes
Mobile network generation	4G
4G standard	LTE
Bluetooth	Yes
Bluetooth Low Energy (BLE)	Yes
Bluetooth version	4.2
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Near Field Communication (NFC)	Yes
WWAN	Installed

Docking connector type	USB Type-C

Form factor	Slate
Product colour	Black
Device type	Mobile tablet
International Protection (IP) code	IP65

Position location	Yes
Assisted GPS (A-GPS)	Yes
GLONASS	Yes
Galileo	Yes
Accelerometer	Yes
Ambient light sensor	Yes
Gyroscope	Yes
Electronic compass	Yes

Platform	Windows
Operating system installed	Windows 10 IoT Enterprise
Operating system architecture	64-bit

Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Embedded options available	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel Clear Video Technology	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Execute Disable Bit	Yes
Idle States	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® Quick Sync Video Technology	Yes
Intel 64	Yes
Physical Address Extension (PAE)	Yes
Intel® Secure Key	Yes
Intel Smart Connect Technology	No
Intel Secure Boot	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel® Smart Response Technology	No
Intel® OS Guard	No
Intel Trusted Execution Technology	No
Intel Rapid Storage Technology	No
Intel® Turbo Boost Technology	No
Physical Address Extension (PAE)	40 bit

Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	3300 mAh
Battery capacity	25 Wh
Battery voltage	7.6 V

Width	228 mm
Depth	12.7 mm
Height	150 mm
Weight	570 g

Certification	MIL-STD-810G

Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 95 %

Harmonized System (HS) code	84713000

Processor ARK ID	96485
