Better Workflows for Healthcare Professionals. Better Experiences for Patients.
As a healthcare provider, you need to give your healthcare professionals the tools they need to provide the very best in patient care, every second of every day. With the DS8100-HC Series handheld imagers, you can.
This premium handheld scanner is purpose-built for healthcare environments, with unparalleled performance on virtually every barcode in any condition, a first-of-its-kind housing delivering maximum protection against the spread of bacteria, flexible user-selectable feedback modes designed for around-the-clock use and more. Streamline workflows for your healthcare professional and deliver better patient experiences with the DS8100-HC Series — only from Zebra.
Viktiga egenskaper

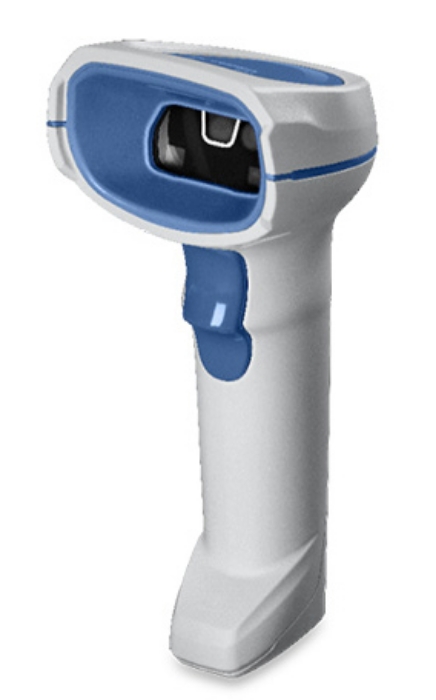

Zebra DS8178-HC. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired & Wireless, Standard interfaces: Keyboard wedge, RS-232, USB, Wireless range: 100 m. Product colour: White, International Protection (IP) code: IP42. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery type: Built-in battery. Weight: 235 g, Width: 66 mm, Depth: 107 mm
Teknisk specifikation
Scanning
| Type | Handheld bar code reader |
|---|
| Scanner type | 1D/2D |
|---|
| 2D (matrix & stacked) barcodes supported | Aztec Code,Composite Codes,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code,TLC-39 |
|---|
| Linear (1D) barcodes supported | Codabar,Code 11,Code 128,Code 39,Code 93,GS1 DataBar Expanded,Interleaved 2 of 5,MSI,Plessey,U.P.C. |
|---|
| Sensor type | LED |
|---|
| Wavelength | 528 nm |
|---|
| Tilt reading angle | 0 - 360 ° |
|---|
| Pitch reading angle | 0 - 60 ° |
|---|
| Yaw reading angle | 0 - 60 ° |
|---|
Ports & interfaces
| Connectivity technology | Wired & Wireless |
|---|
| Standard interfaces | Keyboard wedge,RS-232,USB |
|---|
| Wireless range | 100 m |
|---|
| Bluetooth Low Energy (BLE) | Yes |
|---|
| Bluetooth version | 4.0 |
|---|
Performance
| Product colour | White |
|---|
| International Protection (IP) code | IP42 |
|---|
Power
| Power source type | Battery |
|---|
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
| Battery type | Built-in battery |
|---|
| Number of batteries supported | 1 |
|---|
| Battery capacity | 2500 mAh |
|---|
| Number of reads per charge | 65000 |
|---|
| Battery life | 83 h |
|---|
| Input voltage | 5 V |
|---|
Weight & dimensions
| Width | 66 mm |
|---|
| Depth | 107 mm |
|---|
| Height | 168 mm |
|---|
| Weight | 235 g |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95 % |
|---|
Logistics data
| Harmonized System (HS) code | 84716070 |
|---|
