Produktbeskrivning

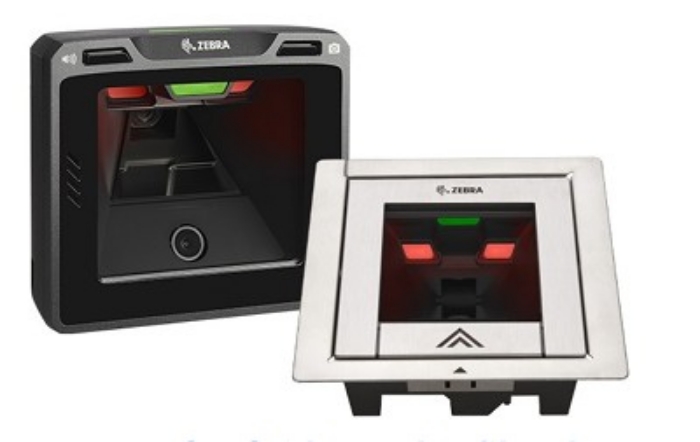

Zebra SP7201 Fixed 1D/2D Single-Plane POS Barcode Scanner, USB, Midnight Black



Viktiga egenskaper

Zebra SP7201SHBMU. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired, Standard interfaces: Keyboard wedge, RS-232, RS-485, USB. Product colour: Black, Housing material: Plastic, International Protection (IP) code: IP52. Power source type: USB, Power consumption (typical): 2.4 W, Power consumption (standby): 1.2 W. Weight: 834 g, Width: 152 mm, Depth: 86 mm



Teknisk specifikation

Type	Fixed bar code reader
Scanner type	1D/2D
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,QR Code,TLC-39
Sensor type	CMOS
Linear (1D) barcodes supported	Code 128,Code 39,Code 93
Trigger mode	Auto-induction
Laser guide	No
Optical sensor resolution (W x H)	1920 x 1200 pixels
2D resolution (min)	5 mm
1D resolution (min)	3 mm
Working distance	230 mm
Horizontal field of view	54 °
Vertical field of view	35.5 °
Wavelength	660 nm

Connectivity technology	Wired
Standard interfaces	Keyboard wedge,RS-232,RS-485,USB

Product colour	Black
Housing material	Plastic
International Protection (IP) code	IP52

Power source type	USB
Power consumption (typical)	2.4 W
Power consumption (standby)	1.2 W
Input voltage	5 V

Width	152 mm
Depth	86 mm
Height	152 mm
Weight	834 g
