Produktbeskrivning

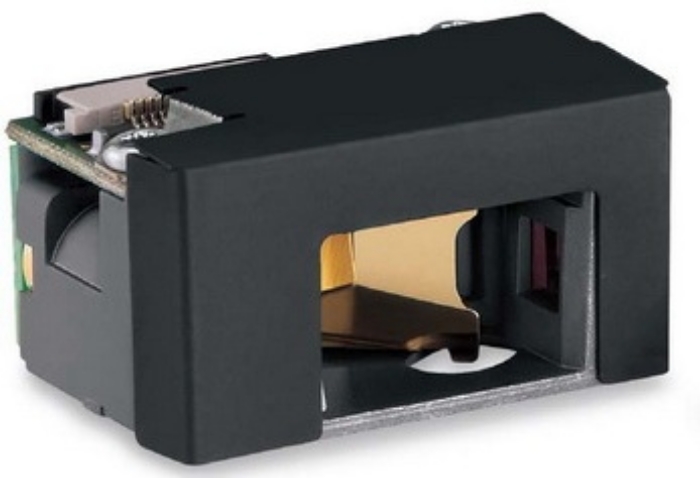

The SE95X OEM laser scan engine raises the bar for miniature scan engines, offering optimum quality, reliability and durability. The flexible working range allows you to meet scanning needs in a wide array of applications and environments. By enabling rapid, cost-effective product development, increased productivity and reduced total cost of ownership, these scan engines give you a true competitive advantage.

Large working range
Meets the needs of a wide range of applications for increased productivity.

Small and light scan engine
Easily optimize product designs.

100 scans per second
Scanning speed delivers aggressive performance and accurate capture of all bar codes — even damaged and poor-quality.

Low power consumption
Increases battery life in portable terminals.

Bright scan line and "Aim" mode
Allows intuitive use across the entire working range.

Programmable scan angle
Provides flexibility to cost-effectively customize products for specific applications.

RoHS-compliant
Meets RoHS requirements.

Die-cast zinc chassis and single-board construction
Has a shock rating of 2,000G for outstanding durability.

Liquid Polymer scan element
Eliminates friction and wear for superior reliability.

Flash-upgradeable
Easy to upgrade software.



Viktiga egenskaper

Motorola SE950. Sensor type: Laser, Linear (1D) barcodes supported: Code 39, Read rate (max): 104 reads/s. Connectivity technology: Wired. Product colour: Black, Certification: FCC. Power source type: DC, Input voltage: 3.3 V, Power consumption: 76 mA. Weight: 7.5 g, Width: 21.6 mm, Depth: 15.5 mm



Teknisk specifikation

Sensor type	Laser
Linear (1D) barcodes supported	Code 39
2D (matrix & stacked) barcodes supported	Not supported
Read rate (max)	104 reads/s
Wavelength	650 nm

Connectivity technology	Wired

Product colour	Black
Certification	FCC

Power source type	DC
Input voltage	3.3 V
Power consumption	76 mA

Width	21.6 mm
Depth	15.5 mm
Height	11.75 mm
Weight	7.5 g

Operating temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Storage temperature (T-T)	-40 - 70 °C

Compliance certificates	RoHS

Harmonized System (HS) code	84716070
