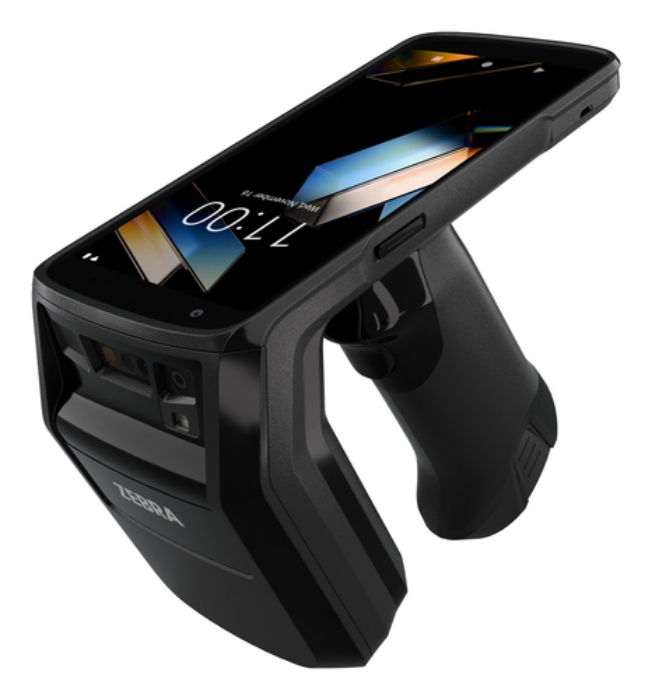

TC22R Integrated Handheld RFID Reader
Track assets easily with a lightweight, all-touch design
In an increasingly competitive marketplace, you need to stay a step ahead with asset tracking that’s easy, intuitive and efficient. The Zebra TC22R Integrated Handheld RFID Reader provides an integrated, lightweight, all-touch design that helps your associates keep track of assets and inventory for extended periods with less fatigue. Capture data in less time and with less effort using a TC22R handheld reader that delivers industry-leading performance, such as read rates up to 1,300 tags per second, in an all-in-one form factor.

Accelerate Your Inventory Management
Ergonomic Design for All-Day Comfort
The TC22R handheld reader combines real-time visibility with simplicity and ease of use. This lightweight reader enables workers to continue cycle counts with less fatigue than heavier devices. That means you get the high performance that comes with field-proven Zebra software in a compact, all-in-one device.

Simplified Deployment
The TC22R handheld reader offers a fully integrated Android-based solution that can be supported by mainstream MDMs, reducing deployment headaches and management overhead. And with the latest Bluetooth® and Wi-Fi capabilities, the TC22R handheld reader offers easy deployment that gives your business a competitive edge.

Industry-Leading Performance
With a robust read rate of up to 1,300 tags per second, the TC22R handheld reader enables greater insights into asset movement and real-time data from the first mile to the last or from the front of the store to the back. In addition, because the TC22R handheld reader has an integrated NFC reader built-in that assists with mobile POS applications, you can capture data in less time and with less effort.

Easy Connectivity
With Wi-Fi 6 and Bluetooth, the TC22R handheld reader is easy to use and manage across your network. That means implementation takes less training time, allowing you to reduce deployment timelines and streamline configuration.

Get the Most Out of Your RFID Investment—From the Leader in RFID
Zebra has more fixed, handheld and portal RFID systems installed than any other RFID provider, giving you the peace of mind that comes from choosing RFID products that are well-tested in practically every industry—and in some of the world’s largest companies. And with over 300 RFID technology patents that have allowed us to deliver many industry firsts, you can count on our best-in-class advanced technologies to maximize the performance of your RFID solution.



Viktiga egenskaper

Zebra TC22R. Display diagonal: 15.2 cm (6"), Display resolution: 1080 x 2160 pixels, Touch technology: Multi-touch. Internal memory: 6 GB, Flash memory: 64 GB. Processor frequency: 2.1 GHz, Processor model: 5430. Operating system installed: Android. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax). Barcode reader



Teknisk specifikation

Display diagonal	6 "
Display resolution	1080 x 2160 pixels
Touch technology	Multi-touch
Touchscreen	Yes
Touchscreen type	Capacitive
Display brightness	450 cd/m²

Internal memory	6 GB
Flash memory	64 GB

Processor frequency	2.1 GHz
Processor model	5430
Number of cores	6

Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax)
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Bluetooth	Yes
Bluetooth version	5.2
Networking standards	IEEE 802.11a,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.11ac,IEEE 802.1D,IEEE 802.11h,IEEE 802.11i,IEEE 802.11r,IEEE 802.11k,IEEE 802.11v,IEEE 802.11w,IEEE 802.11mc,IEEE 802.11ax
Near Field Communication (NFC)	Yes
Security algorithms	WEP,WPA,WPA2,WPA3,WPA-Personal,WPA2-Personal,WPA3-Personal,WPA2-Enterprise,WPA3-Enterprise,EAP-TTLS,MSCHAPv2,EAP-TLS,LEAP,EAP-PWD
MU-MIMO	Yes

Built-in camera	Yes
Rear camera resolution (numeric)	16 MP
Front camera	Yes
Front camera resolution (numeric)	5 MP

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1

Product colour	Black
Barcode reader	Yes
RFID reader	Yes
Scanner type	1D/2D
Vibrating alert	Yes
Drop proof	Yes
LED indicators	Battery level
International Protection (IP) code	IP65
Push-to-Talk (PTT)	Yes
Drop proof	150 cm

Operating system installed	Android

Battery capacity	7000 mAh
Battery technology	Lithium-Ion (Li-Ion)

Weight	569 g
Width	84 mm
Depth	177 mm
Height	145 mm

Operating relative humidity (H-H)	5 - 95 %
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-40 - 70 °C

Rechargeable battery	Yes
