Produktbeskrivning

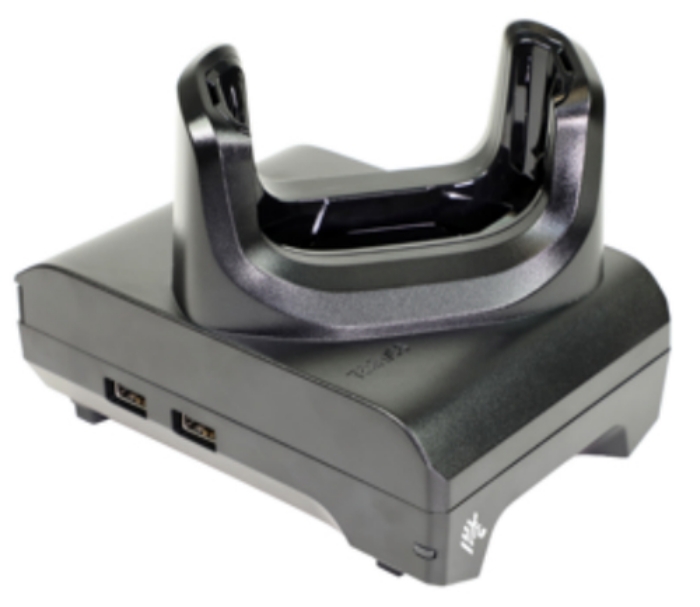

Workstation Docking Cradle Kit- An enhanced single-slot charging cradle allowing users to use the TC5X as a workstation or kiosk.
- Two USB ports are located on both sides of cradle. One port provides 1.5A current. The remaining three provide .5A current.
- Also includes Kensington port to secure the cradle to a desk location. Cradle can also be screwed down to desk/counter.
- Will charge TC5x only. Does not charge spare battery.
- Will charge battery in TC5x from 0-90% in as little as 2.5 hours
- Compatible with TC5x units with hand strap, Rugged Boot, or Pistol Grip Handle attached.
- Includes cradle insert/shim that requires removal when using a TC5x unit with the Rugged Boot/Exoskeleton or Pistol Grip Handle attached.
- Connects to rugged charge/communication connector on bottom of TC5x.
- TC5X may require additional drivers or updated BSP - see PMB 10207 for details.
- Kit includes Workstation Docking Cradle (CRD-TC5X-1SWS1-01), Power Supply (PWR-BGA12V50W0WW) and DC Line Cord (CBL-DC-388A1-01).
Viktiga egenskaper
Zebra CRD-TC5X-1SWS-01. Basic device type: PDA, Brand compatibility: Zebra, Compatibility: TC5x, Product colour: Black
Teknisk specifikation
Performance
| Basic device type | PDA |
|---|
| Brand compatibility | Zebra |
|---|
| Compatibility | TC5x |
|---|
| Product colour | Black |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
Ports & interfaces
| USB 2.0 ports quantity | 4 |
|---|
| Audio output | No |
|---|
| HDMI | Yes |
|---|
| HDMI connector type | Full-size |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Power
| Power source type | DC |
|---|
| DC output current | 1.5 A |
|---|
| External power adapter | Yes |
|---|
Packaging content
| Cables included | DC |
|---|
Logistics data
| Harmonized System (HS) code | 84719000 |
|---|
