Produktbeskrivning

A VERSATILE RUGGED TABLET PLATFORM RUGGED TO THE CORE.
The Zebra L10 rugged platform, formerly manufactured by Xplore Technologies, offers a variety of tablet configurations and a shared accessory ecosystem that sets a new standard in office, vehicle and field-based computing.

Whether your mobile workers prefer a slate tablet (XSLATE L10), a tablet with a rigid-handle and built-in barcode reader option (XPAD L10), or a 2-in-1 laptop/tablet with a full-featured keyboard (XBOOK L10), the functional flexibility of the Zebra L10 ensures that your workers have the right computing tool for their job. Only Zebra offers this many performance, security, connectivity and accessory options in one rugged mobile computer platform.

GET THROUGH TASKS FASTER
With more CPU options than ever, you’re guaranteed that the performance-driven L10 rugged tablet platform will be the right fit for your organization and budget, whatever your operating system. For Windows, choose between three different 8th Generation Intel Core-Series processors or an Intel Pentium-series processor. Add a PCIe solid state drive (SSD) for an extra speed boost. For Android, the Qualcomm Snapdragon 660 gives you power and performance to spare. The L10 is available with a range of RAM and storage options for every business and agency application.

EXPAND YOUR USAGE CAPABILITIES
The L10 combines latest-generation NFC, Bluetooth, 802.11ac Wi-Fi, GPS and 4G LTE mobile broadband technologies to provide uninterrupted connectivity. And each L10 rugged tablet can be equipped with workflow specific tools needed for nearly any application. This includes an optional true serial or HDMI-in port, UHF RFID reader (AEI), and built-in bar code reader (XPad only). RJ-45 jacks and multiple USB ports are standard on all models. Front facing and 13 MP rear facing cameras capture images and video, while built-in microphones support VoIP collaboration.

USE IT VIRTUALLY ANYWHERE
The L10 platform defines a new standard of rugged tablets. It is rated for a 6 ft. drop and is subjected to a raft of MIL-STD-810G tests. It maintains its IP65 rating even with the port doors open. It can be used in cold storage, blowing dust, or driving rain. With daylight or sunlight viewable reinforced glass displays and an active digitizer option, your screen will be easy to read wherever you use it. Plus, the optional 5 pass-through antennas means it's ideal for mounting in vehicles of all types.



Viktiga egenskaper

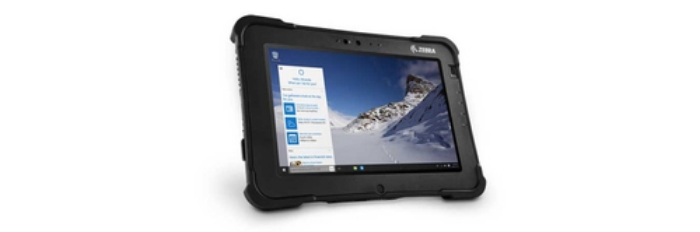

Zebra XSlate L10. Display diagonal: 25.6 cm (10.1"), Display resolution: 1920 x 1200 pixels. Internal storage capacity: 128 GB. Processor frequency: 1.7 GHz, Processor family: Intel® Core™ i5, Processor model: i5-8350U. Internal memory: 16 GB. Rear camera resolution (numeric): 13 MP, Rear camera type: Single camera, Front camera resolution (numeric): 2 MP. Top Wi-Fi standard: Wi-Fi 5 (802.11ac). Card reader integrated. Weight: 1.3 kg. Operating system installed: Windows 10 Pro. Product colour: Black



Teknisk specifikation

Display diagonal	10.1 "
Display resolution	1920 x 1200 pixels
Display brightness	1000 cd/m²
Display glass type	Gorilla Glass
HD type	WUXGA
Touchscreen type	Capacitive
Native aspect ratio	16:10

Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	8th gen Intel® Core™ i5
Processor model	i5-8350U
Processor cores	4
Processor threads	8
Processor boost frequency	3.6 GHz
Processor frequency	1.7 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Conflict-Free processor	Yes
Thermal Monitoring Technologies	Yes
Processor package size	42 X 24 mm
PCI Express configurations	1x2+2x1,1x4,2x2,4x1
Processor operating modes	64-bit
Stepping	Y0
Tjunction	100 °C
Bus type	OPI
Processor code	SR3L9
Processor codename	Kaby Lake R
Supported instruction sets	AVX 2.0,SSE4.1,SSE4.2
System bus rate	4 GT/s
Thermal Design Power (TDP)	15 W
Configurable TDP-down frequency	0.8 GHz
Processor lithography	14 nm

Internal memory	16 GB
Internal memory type	LPDDR3-SDRAM

Internal storage capacity	128 GB
Card reader integrated	Yes
Compatible memory cards	MicroSDXC
Storage media	SSD

Graphics card family	Intel
Graphics card	UHD Graphics 620

Number of built-in speakers	1
Number of microphones	2
Audio system	High Definition (HD)

Rear camera type	Single camera
Rear camera resolution (numeric)	13 MP
Front camera	Yes
Front camera resolution (numeric)	2 MP

Bluetooth	Yes
Bluetooth version	4.2
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1

Form factor	Slate
Product colour	Black
Device type	Tablet PC
International Protection (IP) code	IP65

Trusted Platform Module (TPM)	Yes

Platform	Windows
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Intel Clear Video Technology	Yes
Intel® OS Guard	Yes
Intel TSX-NI	Yes
Intel® Smart Response Technology	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Flex Memory Access	Yes
Execute Disable Bit	Yes
Intel Trusted Execution Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Secure Key	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel 64	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel Enhanced Halt State	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Quick Sync Video Technology	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Embedded options available	No
Intel® InTru™ 3D Technology	Yes
Idle States	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Turbo Boost Technology	2.0
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Intel Smart Response Technology version	1.00
Intel TSX-NI version	1.00
Intel Stable Image Platform Program (SIPP) version	1.00

Battery technology	Lithium-Ion (Li-Ion)
Battery life (max)	10 h

Width	280.8 mm
Depth	22 mm
Height	195.2 mm
Weight	1300 g

Compliance certificates	RoHS

Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	3 - 95 %
Operating altitude	0 - 15240 m

Processor socket	BGA 1356
Processor ARK ID	124969
