Produktbeskrivning

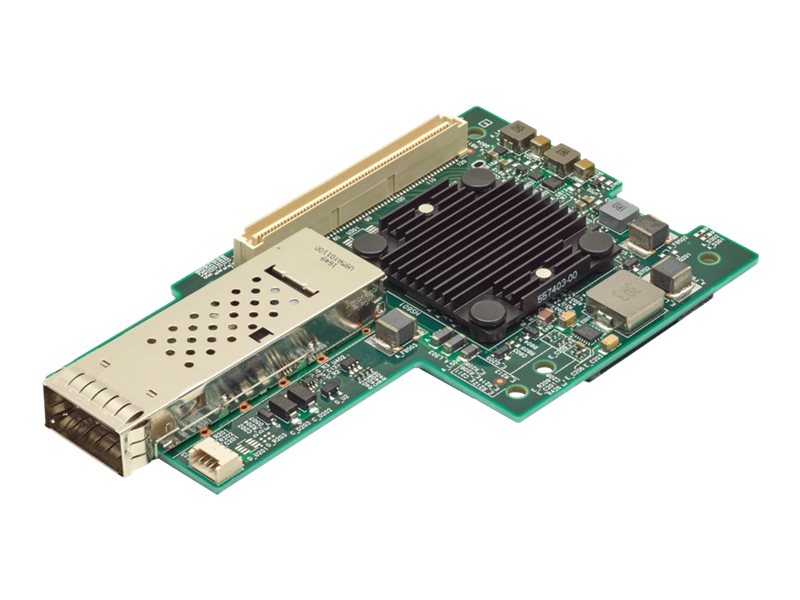

The Broadcom BCM957414M4143C is a single-port 50 Gb/s, PCI Express 3.0 x8 Mezzanine Card, designed to the Open Compute Project (OCP) Mezzanine Card 2.0 Design Specification with a QSFP28 network connector as a Type 1 adapter with the board outline adhering to the original v0.5 dimensions. The adapter supports both QSFP28 optical modules and copper direct-attach cables. The card uses the Broadcom BCM57414 50GbE MAC controller with an integrated single-channel 50GbE SFI transceiver.
Egenskaper
● Single-port pluggable media interface, which may be equipped with 50 Gb/s QSFP28 optical transceiver or with copper direct-attach cable
● Fully compliant with the SFF-8665 standard
● X8 PCI Express 3.0 compliant
● SR-IOV with up to 128 virtual functions (VFs)
● Function-Level Reset (FLR) support
● TruFlow flow processing engine
● Virtual Network Termination - VXLAN, NVGRE, Geneve, GRE encap/decap
● VSwitch acceleration
● Tunnel-aware stateless offloads
● DCB support: PFC, ETS, QCN, DCBx
● RDMA over Converged Ethernet (RoCE)
● Network Controller Sideband Interface (NC-SI)
● SMBus 2.0
● MCTP over SMBus
● PCIe-based UART and KCS
● Jumbo frames up to 9 KB
● Advanced Congestion Avoidance
● Multiqueue, NetQueue, and VMQ
● IPv4 and IPv6 offloads
● TCP, UDP, and IP checksum offloads
● Large Send Offload (LSO)
● Large Receive Offload (LRO)
● TCP Segmentation Offload (TSO)
● Receive-side Scaling (RSS)
● Transmit-side Scaling (TSS)
● VLAN insertion/removal
● Interrupt coalescing
● Network boot - PXE, UEFI
● ISCSI boot
● Wake-on-LAN (WOL)
● MSI and MSI.X
Teknisk specifikation
Allmänt
| Typ av enhet | Nätverksadapter |
|---|
| Formfaktor | Insticksmodul |
|---|
| Gränssnittstyp (buss) | PCI Express 3.0 x8 Mezzanine |
|---|
| Version av PCI-specifikation | PCIe 3.0 |
|---|
Nätverk
| Portar | 50 Gigabit QSFP28 x 1 |
|---|
| Anslutningsteknik | Kabelansluten |
|---|
| Datalänkprotokoll | 50 Gigabit Ethernet |
|---|
| Statusindikatorer | Länk/akvititet |
|---|
| Funktioner | Wake on LAN (WOL), stöd för byte av datacenterbrygga (DCBX), PXE-support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI-support, Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), Extended Message-Signaled Interrupts (MSI-X), Generic Routing Encapsulation (GRE), Transmit Side Scaling (TSS), iSCSI-start, TCP/IP-checksummeavlastning, UDP/IP-checksummeavlastning, RDMA over Converged Ethernet (RoCE), Priority-Based Flow Control (PFC), Network Controller Sideband Interface (NC-SI), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), Function Level Reset (FLR), Meddelandesignalerade avbrott (MSI), 9 KB Jumbo Frame, stöd för Open Compute Project (OCP) 2.0, MCTP over SMBus, TruFlow, Avbrottsmoderering, utökat överföringsval (ETS), Quantized Congestion Notification (QCN), GENEVE-support, vSwitch Acceleration, tunnelmedvetna statslösa avlastningar, SMBus 2.0, VMware NetQueue and Microsoft Virtual Machine Queue (VMQ) |
|---|
Expansion/Anslutning
| Gränssnitt | 1 x 50Gb Ethernet - QSFP28 |
|---|
Diverse
| Standarder som följs | RoHS, MSA SFF-8665 |
|---|
Dimensioner och vikt
| Vikt | 75 g |
|---|
Miljöparametrar
| Min temperatur vid drift | -40 °C |
|---|
| Max temperatur vid drift | 70 °C |
|---|
| Luftfuktighet vid drift | 5 - 95 % (icke-kondenserande) |
|---|
