Produktbeskrivning

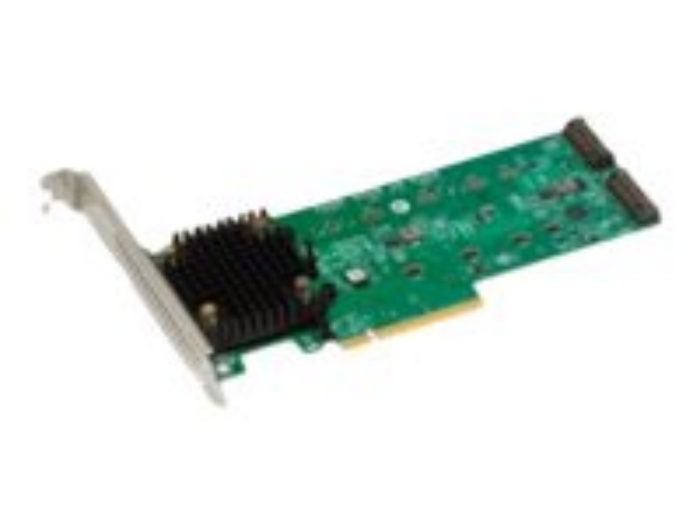

The MegaRAID 9540-2M2 adapter provides a reliable boot solution based on the Broadcom second-generation PCIe Gen 4.0 Tri-Mode SAS3808 I/O controller. The 9540-2M2 adapter supports two M.2 NVMe or SATA drives, enabling users to separate their OS drives from their primary data drives. By taking advantage of the unified Broadcom tool suite, users familiar with the Broadcom standard RAID and HBA controllers can easily integrate the 9540-2M2 adapter into their existing management application suite.

The 9540-2M2 is a low profile, half-length adapter fitting into a standard PCIe slot with two on-board M.2 drives. Customers who trust hardware RAID for critical data can expand this trust to their OS drives. There is no need to sacrifice two drive bays that can be used for user data. The 9540-2M2 adapter enables RAID 0 and RAID 1 using the trusted Broadcom MegaRAID stack.

The 9540-2M2 adapter takes advantage of the Broadcom Tri-Mode SerDes technology enabling the most flexibility for customers by supporting NVMe or SATA M.2 drives for OS boot applications. The adapter detects the drive type and negotiates between speeds and protocols to automatically recognize and work with either NVMe or SATA M.2 drives.



Egenskaper

● RAID 0, 1
● Support critical, high-bandwidth applications with PCIe 4.0 connectivity
● Advanced security through hardware secure boot



Teknisk specifikation

Typ av enhet	Kontrollerkort (RAID) - instickskort - låg profil
Värdbuss	PCIe 4.0 x8

Gränssnitt	SATA 6Gb/s / PCIe 4.0 x8 (NVMe)
Dataöverföringshastighet	6 Gbit/s
Enheter som stöds	Hårddisk, disk array (RAID), halvledarenhet
Antal kanaler	8
RAID-nivå	RAID 0, RAID 1
Processor	Broadcom SAS 3808

Gränssnitt	2 x SATA 6Gb/s / PCIe 4.0 (NVMe) (intern)

Inkluderade tillbehör	Hållare för låg version
Egenskaper	Lysdiodindikator, DDF compliant Configuration on Disk (COD), Online Capacity Expansion (OCE), SecureBoot, stöd för S.M.A.R.T., SSD Guard-teknologi, SafeStore, konsekvent kontroll, snabb initialisering, Patrol Read, Tri-Mode SerDes-teknik, automatisk fortsättning efter strömavbrott i system under array, shield state-enhet diagnostisk teknik
MTBF (genomsnittstid mellan fel)	5,000,000 timmar
Standarder som följs	EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, VCCI V-3, AS/NZS CISPR 22, CNS 13438, FCC CFR47 Part 15 B Class B, IEC/EN/UL 60950, RRA 2013-24 & 25

Medföljande programvara	LSA (LSI Storage Authority), StorCLI, HII (UEFI Human Interface Infrastructure)
Operativsystem erfordras	FreeBSD, SuSe Linux, Microsoft Windows, Debian Linux, Red Hat Enterprise Linux, Oracle Enterprise Linux, Ubuntu, Citrix XenServer, VMware vSphere (ESXi), CentOS Linux, Fedora

Service och support	Begränsad garanti - 3 år Tekniskt stöd - 3 år

Djup	15.565 cm
Höjd	6.89 cm

Min temperatur vid drift	0 °C
Max temperatur vid drift	55 °C
Luftfuktighet vid drift	5 - 90 % (icke-kondenserande)
