Produktbeskrivning

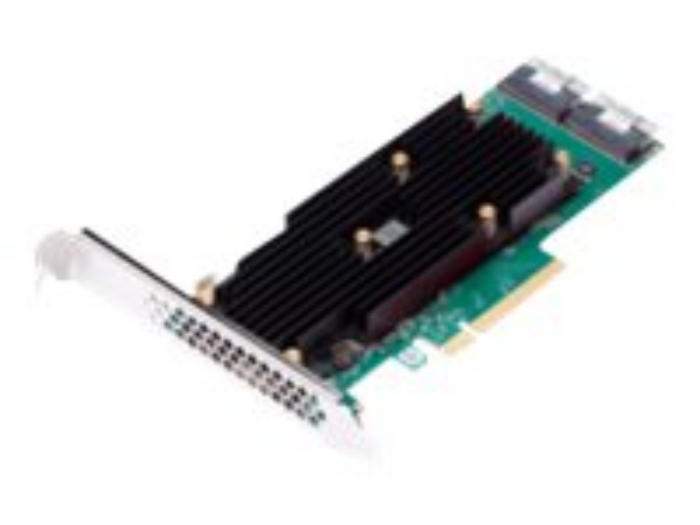

The MegaRAID 9500 series is the industry's first PCIe Gen 4.0 RAID adapter family, offering PCIe Gen 4.0 host and storage interfaces. The MegaRAID 9560-16i adapter, based on the SAS3916 high-port count PCIe 4.0 x8 RAID-on-Chip (RoC), delivers twice the performance of previous generations.

The 9560-16i is compatible with existing PCIe SFF-8639 Module (U.2) backplanes, allowing users to boost performance for today's ever increasing bandwidth environments. Coupled with two industry initiatives expanding the deployment of Tri-Mode SerDes technology, which enables the operation of NVMe, SAS or SATA devices in a single drive bay, the 9560-16i is instrumental in getting the most performance and flexibility out of U.3 backplanes:

With Tri-Mode SerDes technology, the adapter negotiates between speeds and protocols to seamlessly work with any of the three types of storage devices. Tri-Mode support provides a non-disruptive way to evolve existing data center infrastructure.



Egenskaper

● Connect up to 240 SAS/SATA devices or 24 NVMe devices per controller
● Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
● Form-factor friendly cable exit
● Support critical, high-bandwidth applications with PCIe 4.0 connectivity
● Balance protection and performance for critical applications with RAID 0, 1, 5, 6, 10, 50 and 60
● JBOD mode with RAID 0, 1, 10 and JBOD for SDS environments
● Add more protection and peace of mind with CacheVault flash cache protection



Teknisk specifikation

Typ av enhet	Kontrollerkort (RAID) - instickskort
Värdbuss	PCIe 4.0 x8

Gränssnitt	SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe)
Buffertstorlek	8 GB
Enheter som stöds	Disk array (RAID)
Antal kanaler	16
Max antal enheter	240
RAID-nivå	RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60

Gränssnitt	2 x SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - Slim SAS (SFF-8654) (intern)

Egenskaper	Tri-Mode SerDes-teknik
MTBF (genomsnittstid mellan fel)	3,000,000 timmar
Standarder som följs	FCC Klass B-certifierade, EN 60950, EN55022, IEC 60950, EN55024, UL 60950, ICES-003 Class B, RoHS, WEEE, FCC CFR47 Part 15 B, VCCI V-3, AS/NZS CISPR 22, CNS 13438

Energiförbrukning vid drift	13.21 Watt

Operativsystem erfordras	FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Oracle Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Linux Fedora, VMware vSphere (ESXi)

Service och support	Begränsad garanti - 3 år Tekniskt stöd - 3 år

Djup	15.565 cm
Höjd	6.89 cm

Min temperatur vid drift	0 °C
Max temperatur vid drift	55 °C
Luftfuktighet vid drift	5 - 90 % (icke-kondenserande)
