Produktbeskrivning

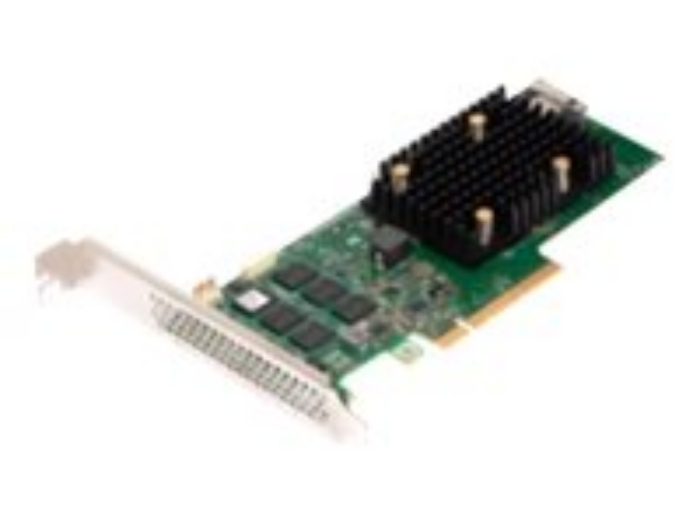

The MegaRAID 9500 series is the industry's first PCIe Gen 4.0 RAID adapter family, offering PCIe Gen 4.0 host and storage interfaces. The MegaRAID 9560-8i adapter, based on the SAS3908 high-port count PCIe 4.0 x8 RAID-on-Chip (RoC), delivers twice the performance of previous generations.
The 9560-8i is compatible with existing PCIe SFF-8639 Module (U.2) backplanes, allowing users to boost performance for today's ever increasing bandwidth environments. Coupled with two industry initiatives expanding the deployment of Tri-Mode SerDes technology, which enables the operation of NVMe, SAS or SATA devices in a single drive bay, the 9560-8i is instrumental in getting the most performance and flexibility out of U.3 backplanes:
With Tri-Mode SerDes technology, the adapter negotiates between speeds and protocols to seamlessly work with any of the three types of storage devices. Tri-Mode support provides a non-disruptive way to evolve existing data center infrastructure.
Egenskaper
● Connect up to 240 SAS/SATA devices or 24 NVMe devices per controller
● Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
● Form-factor friendly cable exit
● Support critical, high-bandwidth applications with PCIe 4.0 connectivity
● Balance protection and performance for critical applications with RAID 0, 1, 5, 6, 10, 50 and 60
● JBOD mode with RAID 0, 1, 10 and JBOD for SDS environments
● Add more protection and peace of mind with CacheVault flash cache protection
Teknisk specifikation
Allmänt
Typ av enhet | Kontrollerkort (RAID) - instickskort |
Värdbuss | PCIe 4.0 x8 |
Kontrollerkort
Gränssnitt | SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) |
Buffertstorlek | 4 GB |
Enheter som stöds | Disk array (RAID) |
Antal kanaler | 8 |
Max antal enheter | 240 |
RAID-nivå | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60 |
Expansion/Anslutning
Gränssnitt | 1 x SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - Slim SAS (SFF-8654) (intern) |
Diverse
Egenskaper | Tri-Mode SerDes-teknik |
MTBF (genomsnittstid mellan fel) | 3,000,000 timmar |
Standarder som följs | FCC Klass B-certifierade, EN 60950, EN55022, IEC 60950, EN55024, UL 60950, ICES-003 Class B, RoHS, WEEE, FCC CFR47 Part 15 B, VCCI V-3, AS/NZS CISPR 22, CNS 13438 |
Strömtillförsel
Energiförbrukning vid drift | 9.64 Watt |
Programvara / Systemkrav
Operativsystem erfordras | FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Oracle Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Linux Fedora, VMware vSphere (ESXi) |
Tillverkarens garanti
Service och support | Begränsad garanti - 3 år Tekniskt stöd - 3 år |
Mått och vikt
Djup | 15.565 cm |
Höjd | 6.89 cm |
Miljöparametrar
Min temperatur vid drift | 0 °C |
Max temperatur vid drift | 55 °C |
Luftfuktighet vid drift | 5 - 90 % (icke-kondenserande) |
