Produktbeskrivning

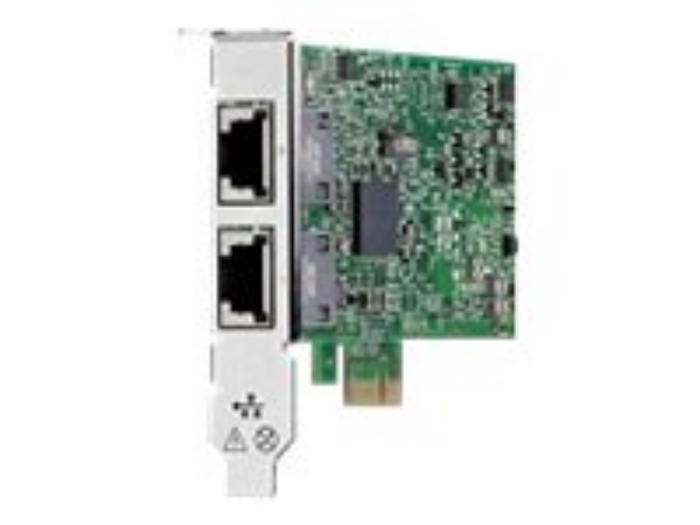

Leveraging long-standing industry leadership in Ethernet, Broadcom now offers the NetXtreme BCM5720-2P Ethernet Server Adapter, providing the highest levels of performance, efficiency, and scalability for the enterprise data center.
Designed for today's enterprise and data center environments, the Broadcom BCM5720-2P Ethernet Server adapter is the ideal solution for multicore servers, delivering full line-rate throughput across all ports. The adapter utilizes Broadcom's field-proven dual-port BCM5720-2P integrated controller device to deliver lower power consumption and Energy Efficient Ethernet (EEE), reducing IT operation costs. The BCM5720-2P is compatible with x86 and x64 servers utilizing the PCIe v1.x and v2.x interfaces.
Increasing application workloads are placing greater demands on enterprise networks, and the BCM5720-2P-based dual-port 1GbE Server Adapter is the solution of choice for such environments, providing a reliable, highperformance, energy-efficient 1GbE connectivity solution.
Egenskaper
● Dual-port 1GbE adapter for rack and tower servers
● x1 PCI Express (PCIe) v2.0 (5 GT/s) support
● Energy Efficient Ethernet (EEE)
● I/O Virtualization supported with 17 receive queues and 16 transmit queues per port
● Full line-rate performance across all ports
● Broad OS and hypervisor support
● Preboot eXecution Environment (PXE) support
● Support for VMware NetQueue and Microsoft VMQ
● Link aggregation and automatic load-balancing
● Wake-on-LAN support
● MSI and MSI-X support
● IPv4 and IPv6 offloads
● TCP, UDP, and IP checksum offloads
● Large Send Offload (LSO)
● TCP Segmentation Offload (TSO)
● Receive Side Scaling (RSS)
● Transmit Side Scaling (TSS)
● VLAN support with VLAN tagging
● Jumbo frame support for frames larger than 1500 Bytes
● Broadcom Advanced Control Suite (BACS) management application
● iSCSI remote boot support
Teknisk specifikation
Allmänt
Typ av enhet | Nätverksadapter |
Formfaktor | Instickskort - låg profil |
Gränssnittstyp (buss) | PCI Express 2.0 x1 |
Nätverk
Portar | Gigabit Ethernet x 2 |
Anslutningsteknik | Kabelansluten |
Typ av kablage | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
Datalänkprotokoll | Ethernet, Fast Ethernet, Gigabit Ethernet |
Dataöverföringshastighet | 1 Gbps |
Funktioner | Flödeskontroll, ACPI-stöd, stöd för IPv6, Jumbo Frames-support, IPv4-support, teamingssupport, PXE-support, Receive Side Scaling (RSS), Energy Efficient Ethernet, TCP Segmentation Offload (TSO), Advanced Error Reporting (AER), Extended Message-Signaled Interrupts (MSI-X), iSCSI remote boot, Transmit Side Scaling (TSS) |
Standarder som följs | IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az |
Processor / Minne
Processor | Broadcom BCM5720 |
Expansion/Anslutning
Gränssnitt | 2 x 1000Base-T - RJ-45 |
Diverse
Förpackningstyp | Parti |
Programvara / Systemkrav
Operativsystem erfordras | Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, SuSE Linux Enterprise Server 10 SP3, SuSE Linux Enterprise Server 10 SP4, SuSE Linux Enterprise Server 11 SP2, Microsoft Windows Server 2012, Red Hat Enterprise Linux 5.8, Red Hat Enterprise Linux 5.9, Red Hat Enterprise Linux 6.3, Red Hat Enterprise Linux 6.4, SuSE Linux Enterprise Server 11 SP3 |
Dimensioner och vikt
Djup | 10.922 cm |
Höjd | 6.858 cm |
Miljöparametrar
Min temperatur vid drift | 0 °C |
Max temperatur vid drift | 55 °C |
Luftfuktighet vid drift | 5 - 95 % (icke-kondenserande) |
