Produktbeskrivning

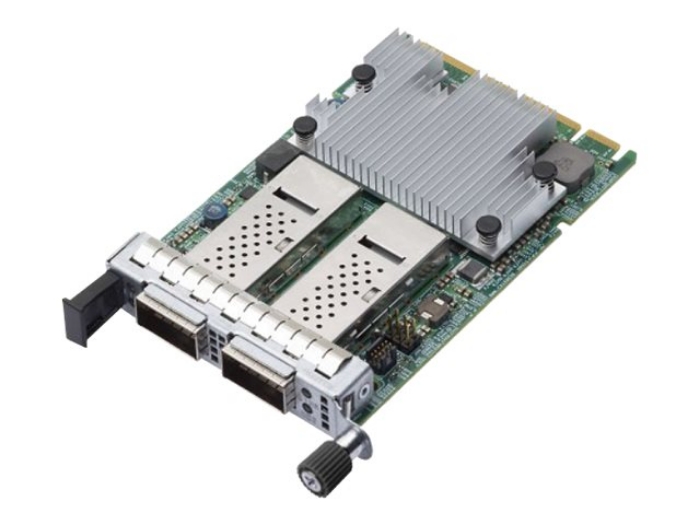

The Broadcom BCM957508-N2100G is a dual-port 100 Gb/s PCI Express 4.0 x16 Network Adapter designed to the Open Compute Project (OCP) 3.0 Design Specification in small form factor with two QSFP56 network connectors. The adapter supports QSFP56/QSFP28/QSFP+ optical modules and copper direct-attach cables. The network adapter uses the Broadcom BCM57508 200GbE MAC controller with an integrated dual-channel 100GbE SFI transceiver.
Egenskaper
● Supports 50G PAM-4 and 25G NRZ signaling
● Multi-Host up to four hosts
● Fully compliant with the SFF-8402 standard
● SR-IOV with up to 1k virtual functions (VFs)
● Function-Level Reset (FLR) support
● TruFlow flow processing engine
● Tunnel-aware stateless offloads
● DCB support - PFC, ETS, QCN, DCBx
● RDMA over Converged Ethernet (RoCE)
● Network Controller Sideband Interface (NC-SI)
● SMBus 2.0
● MCTP over SMBus
● Jumbo frames up to 9 KB
● Advanced congestion avoidance
● Multiqueue, NetQueue, and VMQ
● IPv4 and IPv6 offloads
● TCP, UDP, and IP checksum offloads
● Large send offload (LSO)
● Large receive offload (LRO)
● TCP segmentation offload (TSO)
● Receive-side scaling (RSS)
● Transmit-side scaling (TSS)
● VLAN insertion/removal
● Interrupt coalescing
● Network boot - PXE, UEFI
● Wake-on-LAN (WOL)
● MSI and MSI-X
● OCP 3.0 FRU support
Teknisk specifikation
Allmänt
Typ av enhet | Nätverksadapter |
Formfaktor | Instickskort - låg profil |
Gränssnittstyp (buss) | PCI Express 4.0 x16 |
Version av PCI-specifikation | PCIe 4.0 |
Nätverk
Portar | 100 Gigabit QSFP56 x 2 |
Anslutningsteknik | Kabelansluten |
Datalänkprotokoll | 100 Gigabit Ethernet |
Statusindikatorer | Länk/akvititet |
Funktioner | Wake on LAN (WOL), stöd för byte av datacenterbrygga (DCBX), PXE-support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI-support, Single Root I/O Virtualization (SR-IOV), Data Center Bridging (DCB), TCP Segmentation Offload (TSO), Extended Message-Signaled Interrupts (MSI-X), Generic Routing Encapsulation (GRE), Transmit Side Scaling (TSS), iSCSI-start, TCP/IP-checksummeavlastning, UDP/IP-checksummeavlastning, RDMA over Converged Ethernet (RoCE), Priority-Based Flow Control (PFC), Network Controller Sideband Interface (NC-SI), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), Function Level Reset (FLR), Meddelandesignalerade avbrott (MSI), stöd för Jumbo Frames (upp till 9 000 byte), Mware NetQueue and Microsoft Virtual Machine Queue (VMQ), MCTP over SMBus, TruFlow, Avbrottsmoderering, utökat överföringsval (ETS), Quantized Congestion Notification (QCN), Multi-Host-teknik, stöd för Open Compute Project (OCP) 3,0, vSwitch Acceleration, tunnelmedvetna statslösa avlastningar, SMBus 2.0, NetQueue |
Processor / Minne
Processor | Broadcom BCM57508 |
Expansion/Anslutning
Gränssnitt | 2 x 100Gb Ethernet - QSFP56 |
Diverse
Standarder som följs | MSA SFF-8402 |
Strömtillförsel
Energiförbrukning vid drift | 19.3 Watt |
