Produktbeskrivning

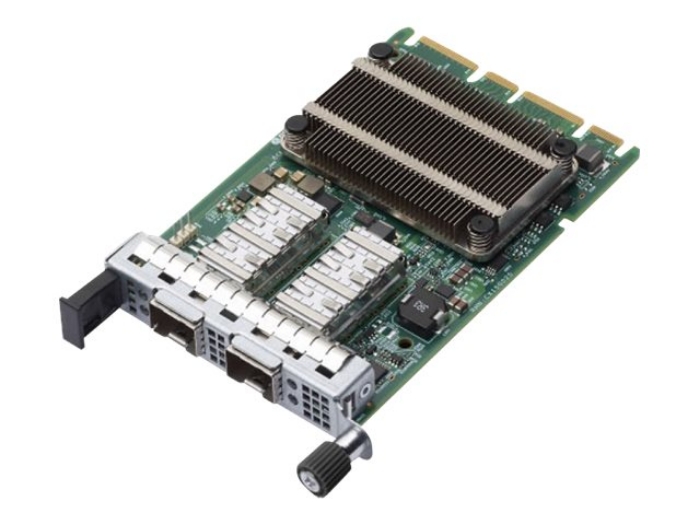

The Broadcom BCM957412N4120C is a dual-port 10 Gb/s PCI Express 3.0 x8 network adapter designed to the Open Compute Project (OCP) 3.0 Design Specification in small form factor with two SFP+ network connectors. The adapter supports SFP+ optical modules and copper direct attach cables. The network adapter uses the Broadcom BCM57412 25GbE MAC controller with an integrated dual-channel 10GbE SFI transceiver.
Egenskaper
● Dual-port pluggable media interface, which can connect to a 10G SFP+ optical transceiver or a copper direct attach cable
● Fully compliant with the SFF-8402 standard
● X8 PCI Express 3.0 compliant
● SR-IOV with up to 128 virtual functions (VFs)
● Function-Level Reset (FLR) support
● TruFlow flow processing engine
● Virtual Network Termination - VXLAN, NVGRE, Geneve, GRE encap/decap
● VSwitch Acceleration
● Tunnel-aware stateless offloads
● DCB support - PFC, ETS, QCN, DCBx
● RDMA over Converged Ethernet (RoCE)
● Network Controller Sideband Interface (NC-SI)
● SMBus 2.0
● MCTP over SMBus
● PCIe-based UART and KCS
● Jumbo frames up to 9 KB
● Advanced congestion avoidance
● Multiqueue, NetQueue, and VMQ
● IPv4 and IPv6 offloads
● TCP, UDP, and IP checksum offloads
● Large send offload (LSO)
● Large receive offload (LRO)
● TCP segmentation offload (TSO)
● Receive-side scaling (RSS)
● Transmit-side scaling (TSS)
● VLAN insertion/removal
● Interrupt coalescing
● Network boot - PXE, UEFI
● ISCSI boot
● Wake-on-LAN (WOL)
● MSI and MSI-X
● Conforms to the OCP 3.0 Design Specification Version 1.00
Teknisk specifikation
Allmänt
| Typ av enhet | Nätverksadapter |
|---|
| Formfaktor | Instickskort |
|---|
| Gränssnittstyp (buss) | Open Compute Project mezzanine (OCP) 3.0 |
|---|
| Version av PCI-specifikation | PCIe 3.0 |
|---|
Nätverk
| Portar | 1Gb Ethernet / 10Gb Ethernet SFP+ x 2 |
|---|
| Anslutningsteknik | Kabelansluten |
|---|
| Datalänkprotokoll | Gigabit Ethernet, 10 Gigabit Ethernet |
|---|
| Dataöverföringshastighet | 10 Gbps |
|---|
| Kapacitet | Jumboramstorlek: 9 KB |
|---|
| Statusindikatorer | Länk/akvititet |
|---|
| Funktioner | Wake on LAN (WOL), stöd för byte av datacenterbrygga (DCBX), TCP/IP-avlastning, PXE-support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI-support, Single Root I/O Virtualization (SR-IOV), Data Center Bridging (DCB), TCP Segmentation Offload (TSO), Extended Message-Signaled Interrupts (MSI-X), UDP/IP-offloading, Transmit Side Scaling (TSS), iSCSI-start, RDMA over Converged Ethernet (RoCE), Priority-Based Flow Control (PFC), Network Controller Sideband Interface (NC-SI), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), Function Level Reset (FLR), Meddelandesignalerade avbrott (MSI), MCTP over SMBus, TruFlow, Avbrottsmoderering, utökat överföringsval (ETS), Quantized Congestion Notification (QCN), GENEVE-support, vSwitch Acceleration, SMBus 2.0, NetQueue, VMQueue |
|---|
Processor / Minne
| Processor | 1 x Broadcom BCM57412 |
|---|
Expansion/Anslutning
| Gränssnitt | 2 x 1Gb Ethernet/10Gb Ethernet - SFP+ |
|---|
Diverse
| Standarder som följs | MSA SFF-8402 |
|---|
Strömtillförsel
| Energiförbrukning vid drift | 7.9 Watt |
|---|
Dimensioner och vikt
| Bredd | 7.6 cm |
|---|
| Djup | 11.5 cm |
|---|
| Vikt | 91 g |
|---|
Tillverkarens garanti
| Service och support | Begränsad garanti - 3 år |
|---|
