Produktbeskrivning

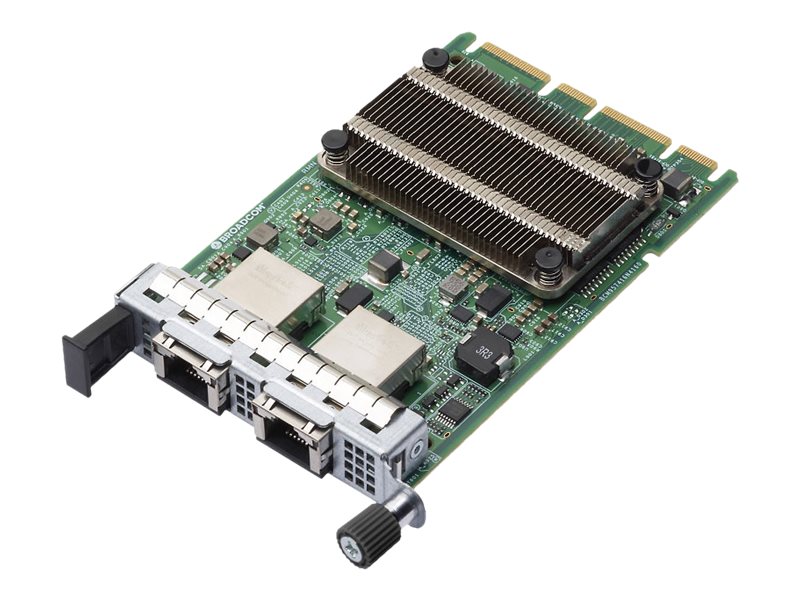

Based on Broadcom's scalable 10/25/50/100/200G Ethernet controller architecture, the NetXtreme -E Series N210TP 2x10GBASE-T OCP 3.0 adapter is designed to build highly-scalable, feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications, including high-performance computing, Telco, machine learning, storage disaggregation, and data analytics.
The N210TP 2x10GBASE-T OCP 3.0 adapter builds upon the success of the widely-deployed NetXtreme E-Series architecture by combining a high-bandwidth Ethernet controller with a unique set of highly-optimized hardware acceleration engines to enhance network performance and improve server efficiency.
The NetXtreme-E Series N210TP 2x10GBASE-T OCP 3.0 adapter addresses these performance and service demands of mega-scale data center networks with high throughput and advanced flow processing. Features such as TruFlow increase VM density up to 50 percent, freeing more CPU cycles for additional virtual machines. On-chip tunneling protocol processing for Geneve, VXLAN, and NVGRE provides up to a 5X throughput increase while lowering CPU utilization up to 90 percent compared to software-only solutions. NetXtreme-E Series solutions also support advanced networking technologies such as RoCE, SDN and NFV, to facilitate the management of data networks and to enable service provider solutions.
Egenskaper
● Standards-compliant 10GBASE-T dual-port OCP 3.0 adapter with line-rate, full-duplex throughput
● NIC partitioning supporting 16 physical functions (PFs)
● TruFlow engine for intelligent flow processing to increase server VM density and accelerate vSwitch processing
● End-to-end congestion avoidance and management to anticipate and eliminate congestion before it happens
● Support for advanced networking technologies including RoCE, SDN, NFV and virtualization
● TruManage enhances server manageability and security for data center deployments
Teknisk specifikation
Allmänt
| Typ av enhet | Nätverksadapter |
|---|
| Gränssnittstyp (buss) | PCI Express 3.0 x8 |
|---|
| Version av PCI-specifikation | PCI 3.0 |
|---|
Nätverk
| Portar | Gigabit Ethernet/10 Gb Ethernet x 2 |
|---|
| Anslutningsteknik | Kabelansluten |
|---|
| Typ av kablage | Ethernet 1000Base-T, Ethernet 10GBase-T |
|---|
| Datalänkprotokoll | Gigabit Ethernet, 10 Gigabit Myrinet |
|---|
| Dataöverföringshastighet | 10 Gbps |
|---|
| Statusindikatorer | Länk/akvititet |
|---|
| Funktioner | Wake on LAN (WOL), auto-uplink (auto MDI/MDI-X), stöd för byte av datacenterbrygga (DCBX), PXE-support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI-support, Single Root I/O Virtualization (SR-IOV), Data Center Bridging (DCB), TCP Segmentation Offload (TSO), Extended Message-Signaled Interrupts (MSI-X), Generic Routing Encapsulation (GRE), Transmit Side Scaling (TSS), iSCSI-start, TCP/IP-checksummeavlastning, UDP/IP-checksummeavlastning, RDMA over Converged Ethernet (RoCE), Priority-Based Flow Control (PFC), Network Controller Sideband Interface (NC-SI), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), Function Level Reset (FLR), Meddelandesignalerade avbrott (MSI), stöd för Jumbo Frames (upp till 9 000 byte), Mware NetQueue and Microsoft Virtual Machine Queue (VMQ), MCTP over SMBus, TruFlow, Avbrottsmoderering, utökat överföringsval (ETS), Quantized Congestion Notification (QCN), stöd för Open Compute Project (OCP) 3,0, vSwitch Acceleration, tunnelmedvetna statslösa avlastningar, SMBus 2.0, NetQueue |
|---|
| Standarder som följs | IEEE 802.3ab, IEEE 802.3an, OCP 3.0 |
|---|
Processor / Minne
| Processor | Broadcom BCM57416 |
|---|
Expansion/Anslutning
| Gränssnitt | 2 x 1/10GBase-T - RJ-45 |
|---|
Diverse
| Standarder som följs | EMC |
|---|
Strömtillförsel
| Energiförbrukning vid drift | 14.6 Watt |
|---|
Mått och vikt (brutto)
| Emballagets vikt | 110 g |
|---|
