Produktbeskrivning

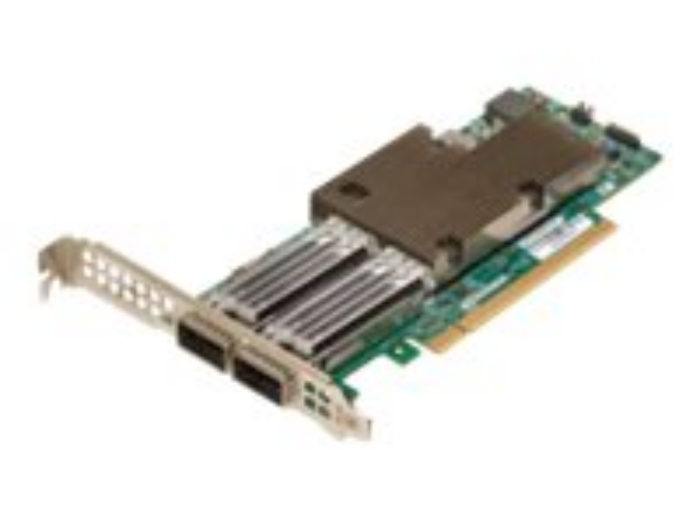

Based on Broadcom's scalable 10/25/50/100/200G Ethernet controller architecture, the NetXtreme-E Series P2100G 2x100G PCIe NIC is designed to build highly scalable, feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications, including high-performance computing, telco, machine learning, storage disaggregation and data analytics.
The P2100G 2x100G PCIe NIC builds upon the success of the widely deployed NetXtreme E-Series architecture by combining a high-bandwidth Ethernet controller with a unique set of highly optimized hardware acceleration engines to enhance network performance and improve server efficiency.
Driven by the growing need for higher server bandwidth and storage capacity to support emerging applications, enterprises, telcos and cloud providers are modernizing their data centers by adopting networking technologies, such as server virtualization and NVMe-oF. The resulting expansion in data volumes increases server-to-server traffic and CPU loads for networking tasks.
Egenskaper
● Standards-compliant 100/50/25/10G dual-port QSFP56 PCIe NIC with line-rate, full-duplex throughput
● NIC partitioning supporting 16 physical functions (PFs)
● TruFlow engine for intelligent flow processing to increase server VM density and accelerate vSwitch processing
● Support for advanced networking technologies including RoCE, SDN, NFV and virtualization
● TruManage enhances server manageability and security for data center deployments
Teknisk specifikation
Allmänt
| Typ av enhet | Nätverksadapter |
|---|
| Formfaktor | Instickskort - låg profil |
|---|
| Gränssnittstyp (buss) | PCI Express 4.0 x16 |
|---|
| Version av PCI-specifikation | PCIe 4.0 |
|---|
Nätverk
| Portar | 100 Gigabit QSFP56 x 2 |
|---|
| Anslutningsteknik | Kabelansluten |
|---|
| Datalänkprotokoll | 100 Gigabit Ethernet |
|---|
| Statusindikatorer | Länk/akvititet |
|---|
| Funktioner | Stöd för byte av datacenterbrygga (DCBX), PXE-support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI-support, Single Root I/O Virtualization (SR-IOV), Data Center Bridging (DCB), TCP Segmentation Offload (TSO), Extended Message-Signaled Interrupts (MSI-X), Generic Routing Encapsulation (GRE), Transmit Side Scaling (TSS), iSCSI-start, TCP/IP-checksummeavlastning, UDP/IP-checksummeavlastning, RDMA over Converged Ethernet (RoCE), Priority-Based Flow Control (PFC), Network Controller Sideband Interface (NC-SI), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), Function Level Reset (FLR), Meddelandesignalerade avbrott (MSI), stöd för Jumbo Frames (upp till 9 000 byte), Network Partitioning (NPAR), Mware NetQueue and Microsoft Virtual Machine Queue (VMQ), MCTP over SMBus, TruFlow, Avbrottsmoderering, utökat överföringsval (ETS), Quantized Congestion Notification (QCN), Multi-Host-teknik, vSwitch Acceleration, tunnelmedvetna statslösa avlastningar, SMBus 2.0, NetQueue |
|---|
Processor / Minne
| Processor | Broadcom BCM57508 |
|---|
Expansion/Anslutning
| Gränssnitt | 2 x 100Gb Ethernet - QSFP56 |
|---|
Diverse
| Inkluderade tillbehör | Hållare för låg version, standardkonsol |
|---|
| Standarder som följs | MSA SFF-8402 |
|---|
Strömtillförsel
| Energiförbrukning vid drift | 19.3 Watt |
|---|
Dimensioner och vikt
| Vikt | 167 g |
|---|
Tillverkarens garanti
| Service och support | Begränsad garanti - 3 år |
|---|
