Produktbeskrivning

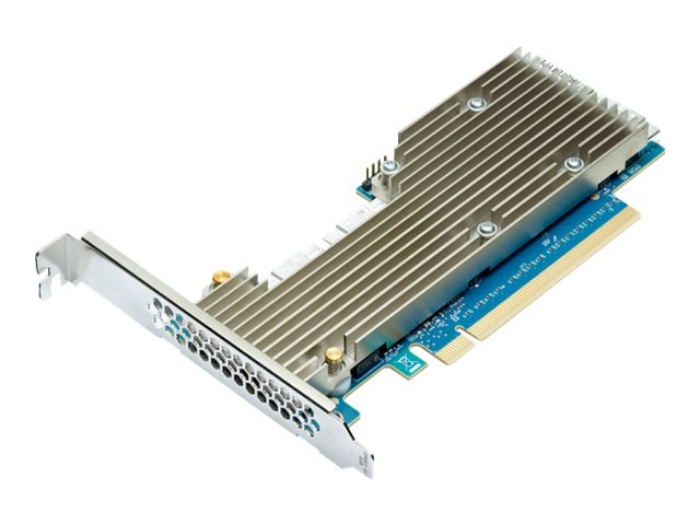

The Broadcom P411W-32P is the industry's first fully managed Gen 4 NVMe switch adapter, providing enterprise class options for NVMe solid state drive (SSD) attach requirements. The P411W-32P leverages Broadcom's world-class board design, PEX88048 PCIe Gen 4 switch chip, and solid firmware expertise, to provide advanced features not available using traditional NVMe drive attach methods. Similar to Broadcom HBAs, the P411W-32P adapter is supplied with fully validated and supported firmware and standards based out of band manageability features. The P411W-32P switch adapter delivers several innovative features, including true surprise add and removal, Downstream Port Containment and Read Tracking, which can help the users avoid typical situations that could cause a kernel panic. The integrated management processor delivers added features, such as SES compatible LED control and BMC support.
Egenskaper
● X16 PCIe Gen 4 Host Interconnect
● Up to 8 x4, 16 x2, or 32 x1 NVMe SSD connect
● SRIS and REFCLK support
● SFF-9402 compliant connector pinout
● Downstream port containment
● Read tracking
● Surprise Add and Remove
● Synthetic Hierarchy generation
● FRU Inventory support
● Hardware Secure Boot
● LED Management
Teknisk specifikation
Allmänt
Typ av enhet | Kontrollerkort - instickskort - låg profil |
Värdbuss | PCIe 4.0 x16 |
Kontrollerkort
Gränssnitt | NVMe |
Enheter som stöds | Halvledarenhet |
Max antal enheter | 32 |
Processor | Broadcom PEX88048 |
Expansion/Anslutning
Gränssnitt | 4 x NVMe - Slim SAS (SFF-8654) |
Anslutningar | 1 x PCIe 4.0 x16 - PCI Express |
Diverse
Egenskaper | SecureBoot, Universal Bay Management (UBM) redo |
MTBF (genomsnittstid mellan fel) | 5,000,000 timmar |
Standarder som följs | EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, VCCI V-3, AS/NZS CISPR 22, CNS 13438, FCC CFR47 Part 15 B Class B, IEC/EN/UL 60950 |
Strömtillförsel
Energiförbrukning vid drift | 21 Watt |
Tillverkarens garanti
Service och support | Begränsad garanti - 3 år |
Mått och vikt
Djup | 15.59 cm |
Höjd | 6.89 cm |
Miljöparametrar
Min temperatur vid drift | 0 °C |
Max temperatur vid drift | 55 °C |
Luftfuktighet vid drift | 5 - 90 % (icke-kondenserande) |
