Produktbeskrivning

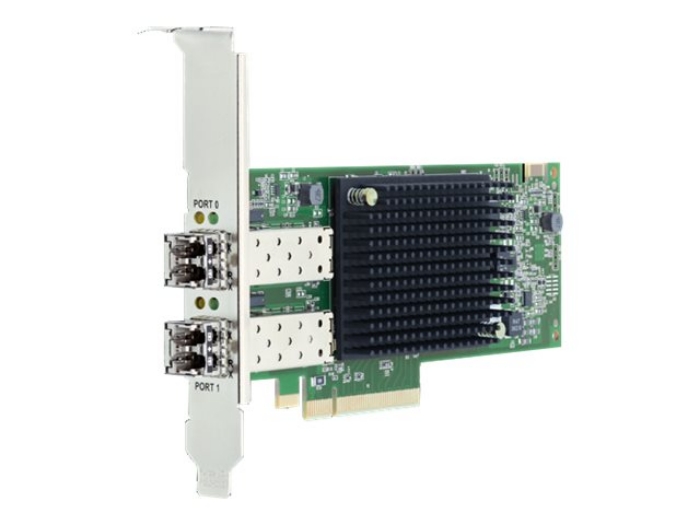

The Emulex LPe35000 Gen 7 Fiber Channel (FC) Host Bus Adapters (HBAs) by Broadcom are designed for demanding mission-critical workloads and emerging applications.

Applications continue to grow in size and scale and, to support them, enterprises are increasingly turning to new server technologies that contain hundreds of processor cores as well as high-performance storage solutions including low-latency NVMe all-flash arrays (AFAs). NVMe can significantly increase the performance of storage area networks (SANs), making the selection of high-speed networking technology the critical element for achieving maximum system-wide performance.

Fiber Channel is purpose-built for storage networks, meeting the requirements for high availability, scalability, predictable performance and low latency. Compared to the previous generation, Emulex Gen 7 FC HBAs offer up to 2x higher bandwidth, 3x better latency, enhanced security, and operational efficiency for 32GFC and 64GFC SANs.



Teknisk specifikation

Typ av enhet	Värdbussadapter
Formfaktor	Instickskort - låg profil
Gränssnittstyp (buss)	PCI Express 4.0 x8
Version av PCI-specifikation	PCIe 4.0

Portar	32Gb Fibre Channel Gen 7 (Short Wave) x 2
Anslutningsteknik	Kabelansluten
Typ av kablage	Fibre Channel
Datalänkprotokoll	32Gb Fibre Channel Gen 7 (Short Wave)
Fibre Channel	FC-DA, FC-FS, FC-GS-2, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-Tape, FCP-4, FCP-2, FC-PI-2, FC-GS-5, FCP-3, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-PI-5, FC-LS-2, FC-DA-2, SSC-2, SPC-3, FC-FS-4, FC-GS-7, FC-PI-6, SBC-3, SPC-4, SSC-4, SSC-3, FC-LS-3, FC-NVMe, FC-FS-5, FC-PI-7
Dataöverföringshastighet	28.05 Gbps

Gränssnitt	2 x 32Gb Fibre Channel Gen 7 (Short Wave) - LC

Inkluderade tillbehör	Hållare för låg version, hållare med full höjd
Standarder som följs	FCC klass A-certifierad, CSA, UL, RoHS, BSMI Class A, ICES Class A, KCC Class A, VCCI Class A, China RoHS, RCM

Djup	16.764 cm
Höjd	6.891 cm

Min temperatur vid drift	0 °C
Max temperatur vid drift	55 °C
Luftfuktighet vid drift	5 - 95 % (icke-kondenserande)
